Part Number: 74ABTH16244A









Description: The 74ABT16244A high-performance BiCMOS device combines low static and dynamic power dissipation with high speed and&nb...


Urgent Purchase

74ABTH16244A General Description


The 74ABT16244A high-performance BiCMOS device combines low static and dynamic power dissipation with high speed and  high output drive.

The 74ABT16244A device is a 16-bit buffer that is ideal for driving bus lines.  The device features four Output Enables (1OE, 2OE, 3OE, 4OE), each controlling four of the 3-State outputs. Two options are available, 74ABT16244A which does not have the bus hold feature and 74ABTH16244A which incorporates the bus hold feature.

74ABTH16244A Maximum Ratings

SYMBOL
PARAMETER
 CONDITIONS
RATING
UNIT
VCC
 DC supply voltage
0.5 to +7.0
V
IIK
 DC input diode current VI < 0
           18
mA
VI
 DC input voltage3    1.2 to +7.0
V
IOK
 DC output diode current VO < 0
50
mA
VOUT
 DC output voltage3 output in Off or High state
0.5 to +5.5
V
IOUT
 DC output current output in Low state
128

mA
output in High state
-64
Tstg
 Storage temperature range
65 to +150

°C

74ABTH16244A Features

*16-bit bus interface
*Multiple VCC and GND pins minimize switching noise
*Power-up 3-State
*3-State buffers
*Output capability: +64 mA/32mA
*Live insertion/extraction permitted
*Latch-up protection exceeds 500mA per JEDEC Std 17
*ESD protection exceeds 2000 V per MIL STD 883 Method 3015
  and 200 V per Machine Model
*74ABTH16244A incorporates bus hold data inputs which eliminate
  the need for external pull up resistors to hold unused inputs
*Bus-hold data inputs eliminate the need for external pull-up
  resistors to hold unused inputs

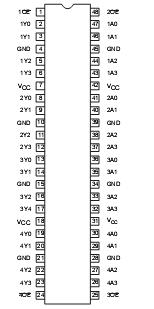

74ABTH16244A Connection Diagram

74ABTH16244A Connection Diagram
