This octal buffer/line driver is designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. This device provides inverting outputs and symmetrical active-low output-enable (OE) inputs. This device features high fan-out and improved fan-in.
The 74AC11240 is organized as two 4-bit buffers/line drivers with separate OE inputs. When OE is low, the device passes inverted data from the A inputs to the Y outputs. When OE is high, the outputs are in the high-impedance state.
The 74AC11240 is characterized for operation from 40°C to 85°C.
74AC11240 Maximum Ratings
Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 4.6V
Input voltage range, VI (see Note 1) . . . . . . . . . . . .. . . . . . . . .. . . . . . . . . . . 0.5 V to VCC + 0.5 V
Output voltage range, VO (see Notes 1 ) . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to VCC + 0.5 V
Input clamp current, IIK (VI < 0 or VI > VCC). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . ±20 mA
Output clamp current, IOK (VO < 0 or VO > VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±50 mA
Continuous output current, IO (VO = 0 to VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . .±50 mA
Continuous current through VCC or GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ... ±100mA
Maximum power package dissipation at TA = 55°C (in still air)(see Note 2):DB package . . . 0.65 W
DW package . . . . 1.7 W
NT package . . . . .1.3 W
Storage temperature range ,Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C
Input voltage range, VI (see Note 1) . . . . . . . . . . . .. . . . . . . . .. . . . . . . . . . . 0.5 V to VCC + 0.5 V
Output voltage range, VO (see Notes 1 ) . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to VCC + 0.5 V
Input clamp current, IIK (VI < 0 or VI > VCC). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . ±20 mA
Output clamp current, IOK (VO < 0 or VO > VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±50 mA
Continuous output current, IO (VO = 0 to VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . .±50 mA
Continuous current through VCC or GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ... ±100mA
Maximum power package dissipation at TA = 55°C (in still air)(see Note 2):DB package . . . 0.65 W
DW package . . . . 1.7 W
NT package . . . . .1.3 W
Storage temperature range ,Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C
74AC11240 Features
Flow-Through Architecture Optimizes PCB Layout
Center-Pin VCC and GND Configurations Minimize High-Speed Switching Noise
EPICTM (Enhanced-Performance Implanted CMOS) 1-m Process
500-mA Typical Latch-Up Immunity at 125°C
Package Options Include Plastic Small-Outline (DW) and Shrink Small-Outline (DB) Packages, and Standard Plastic 300-mil DIPs (NT)
Center-Pin VCC and GND Configurations Minimize High-Speed Switching Noise
EPICTM (Enhanced-Performance Implanted CMOS) 1-m Process
500-mA Typical Latch-Up Immunity at 125°C
Package Options Include Plastic Small-Outline (DW) and Shrink Small-Outline (DB) Packages, and Standard Plastic 300-mil DIPs (NT)

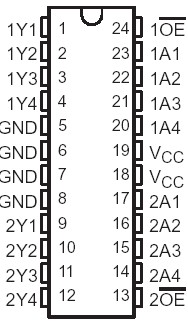

74AC11240 Connection Diagram
74AC11240
