Symbol | Parameter | Value | Unit |
VCC | Supply Voltage | -0.5 to +7.0 | V |
VI | DC Input Voltage | -0.5 to +7.0 | V |
VO | DC Output Voltage | -0.5 to VCC + 0.5 | V |
IIK | DC Input Diode Current | ± 20 | mA |
IOK | DC Output Diode Current | ± 50 | mA |
IO | DC Output Current | ± 50 | mA |
ICC or IGND | DC VCC or Ground Current | ± 400 | mA |
Tstg | Storage Temperature | -65 to +150 | |
TL | Lead Temperature (10 sec) | 300 |

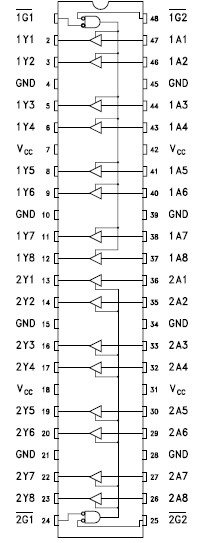

The 74AC16541 is an advanced high-speed CMOS 16-BIT BUS BUFFER (3-STATE) fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS tecnology.This is composed of two 8-bit sections with separate output-enable signals. For either 8-bit buffers section, the 3 STATE control gate operates as a two input AND such that if either nG1 and nG2 are high, all outputs are in the high impedence state.
