Product Details

Description



Features:

 'ACT843 has TTL-compatible inputs
TRI-STATE®outputs for bus interfacing


Pinout

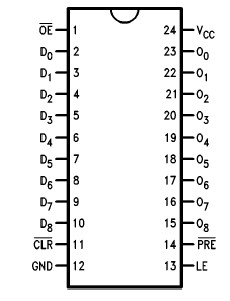

Connection Diagram


Specifications

Supply Voltage (VCC)
DC Input Diode Current (IIK)
    VI = -0.5V
    VI = VCC +0.5V
DC Input Voltage (VI)
DC Output Diode Current (IOK)
    VO= -0.5V
    VO = VCC +0.5V
DC Output Voltage (VO)
DC Output Source
    or Sink Current (IO)
DC VCC or Ground Current
    per Output Pin (ICC or IGND)
Storage Temperature (TSTG)
Junction Temperature (TJ)
    PDIP

-0.5V to +7.0V

-20 mA
+20 mA
-0.5V to VCC +0.5V

-20 mA
+20 mA
-0.5V to VCC +0.5V

±50 mA

±50 mA
-65oC to +150oC


140oC




Description

The 74AC843 bus interface latch is designed to eliminate the extra packages required to buffer existing latches and provide extra data width for wider address/data paths.

The 74AC843 is functionally and pin compatible with AMD's Am29843.
