Purchase 74ACT11030DR, In-stock 74ACT11030DR From SeekIC.

MFG:Texas Instruments  Category:Integrated Circuits (ICs)

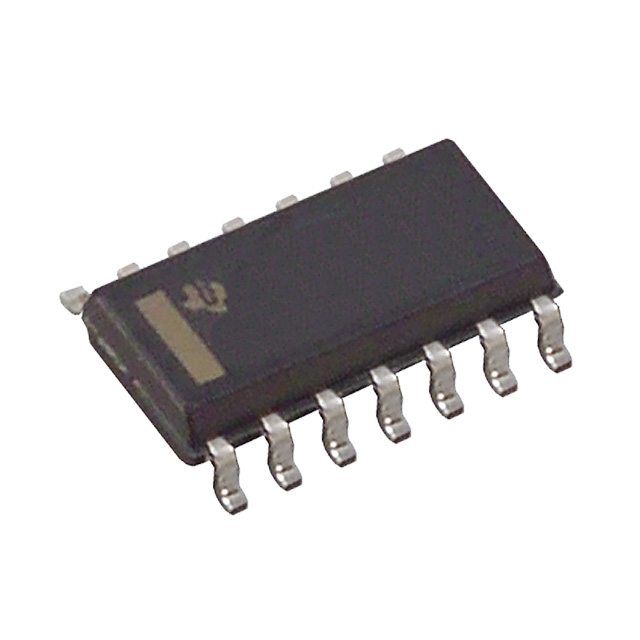

74ACT11030DR

74A Series Datasheet download

Five Points

Part Number: 74ACT11030DR

Category: Integrated Circuits (ICs)

MFG: Texas Instruments





Descriptions: IC 8-IN NAND GATE 14-SOIC

Price Break

2500
10000
25000

Unit Price

.92200
.88200
.86400

Extended Price

2305.00
8820.00
21600.00

(All prices are in USD) Prices for reference only
Urgent Purchase

74ACT11030DR General Description

IC 8-IN NAND GATE 14-SOIC

74ACT11030DR Parameters

Technical/Catalog Information74ACT11030DR
VendorTexas Instruments
CategoryIntegrated Circuits (ICs)
Number of Circuits1 - Single
Package / Case14-SOIC (3.9mm Width), 14-SOL
Logic TypeNAND Gate
PackagingTape & Reel (TR)
Mounting TypeSurface Mount
Number of Inputs8
Current - Output High, Low24mA, 24mA
Supply Voltage4.5 V ~ 5.5 V
Operating Temperature-40°C ~ 85°C
Voltage - Supply4.5 V ~ 5.5 V
Drawing Number296; 4040047-3; D; 14
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 74ACT11030DR
74ACT11030DR
296 4180 2 ND
29641802ND
296-4180-2
