74ACT16244

Features: Members of the Texas Instruments Widebus™ FamilyInputs Are TTL-Voltage Compatible3-State Outputs Drive Bus Lines or Buffer Memory Address RegistersFlow-Through Architecture Optimizes PCB LayoutDistributed VCC and GND Pin Configurations Minimize High-Speed Switching NoiseEPIC™...

product image

74ACT16244 Picture
See larger image
SeekIC No. : 004249015 Detail

74ACT16244: Features: Members of the Texas Instruments Widebus™ FamilyInputs Are TTL-Voltage Compatible3-State Outputs Drive Bus Lines or Buffer Memory Address RegistersFlow-Through Architecture Optimizes...

74ACT16244 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74ACT16244
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/29

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Members of the Texas Instruments Widebus™ Family
Inputs Are TTL-Voltage Compatible
3-State Outputs Drive Bus Lines or Buffer Memory Address Registers
Flow-Through Architecture Optimizes PCB Layout
Distributed VCC  and GND Pin Configurations Minimize  High-Speed Switching Noise
EPIC™(Enhanced-Performance Implanted CMOS) 1-m Process
500-mA Typical Latch-Up Immunity at 125
Package Options Include Plastic Shrink
   Small-Outline (DL) and Thin Shrink
   Small-Outline (DGG) Packages, and 380-mil
   Fine-Pitch Ceramic Flat (WD)
   Packages Using 25-mil Center-to-Center Pin Spacings

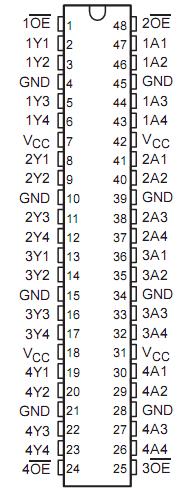

Pinout

Connection Diagram


Specifications

Supply voltage range,   VCC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.5 V to 7V
Input voltage range, VI(see Note 1). . . . . .  . . . . . . . . . . . . . . . . . .. . . -0.5 V toVCC + 0.5 V
Onput voltage range, VO(see Note 1). . . . .  . . . . . . . . . . . . . . . . .. . . . -0.5 V toVCC + 0.5 V
Input clamp current, IIK (VI < 0 or VI > VCC )  .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±20mA
Input clamp current, IOK (VO < 0 or VO > VCC )  .. . . . . . . . . . . . . . . . . . .  . . . . . . . . ±50mA
Continuous output current,IO (VO < 0 or VO > VCC )   . . . . . . . . . . . . . .. . . . . . . . . . ±50mA
Continuous current through VCC or GND .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . .±400mA
Maximum power dissipation at TA  = 55 (in still air) (see Note 2):DGG package. . . 0.85 W
                                                                                                        DL package  . . .  . 1.2 W
Storage temperature range, Tstg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-65 to 150


Description

      The 74ACT16244 are 16-bit buffers/line drivers designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters.They can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer. The devices provide true outputs and symmetrical OE (active-low) output-enable inputs.

      The 74ACT16244 is packaged in TI!fls shrink small-outline package, which provides twice the I/O pin count an functionality of standard small-outline packages in the same printed-circuit-board area.

      The SN54ACT16244 is characterized for operation over the full military temperature range of -55 to 125.The 74ACT16244 is characterized for operation from -40to 85.
