74ACT16244SSC

Buffers & Line Drivers 16-Bit Buf/Line Drv

product image

74ACT16244SSC Picture
See larger image
SeekIC No. : 00411823 Detail

74ACT16244SSC: Buffers & Line Drivers 16-Bit Buf/Line Drv

74ACT16244SSC Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74ACT16244SSC
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/29

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Number of Input Lines : 16 Number of Output Lines : 3
Polarity : Non-Inverting Supply Voltage - Max : 5.5 V
Supply Voltage - Min : 4.5 V Maximum Operating Temperature : + 85 C
Mounting Style : SMD/SMT Package / Case : SSOP-48
Packaging : Tube

Description

Polarity : Non-Inverting
Maximum Operating Temperature : + 85 C
Mounting Style : SMD/SMT
Supply Voltage - Max : 5.5 V
Supply Voltage - Min : 4.5 V
Number of Output Lines : 3
Packaging : Tube
Number of Input Lines : 16
Package / Case : SSOP-48


Features:

Separate control logic for each byte and nibble
16-bit version of the AC244/ACT244
Outputs source/sink 24 mA
ACT16244 has TTL-compatible inputs


Pinout

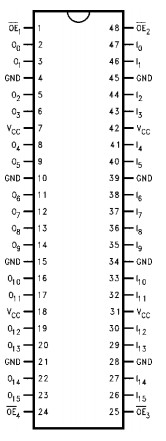

Connection Diagram


Specifications

Supply Voltage (VCC).................. −0.5V to +7.0V
DC Input Diode Current (IIK)
    VI = −0.5V ......................................... −20 mA
    VI = VCC + 0.5V................................. +20 mA
DC Input Voltage (VI) .........−0.5V to VCC + 0.5V
DC Output Diode Current (IOK)
    VO = −0.5V........................................  −20 mA
    VO = VCC + 0.5V +20 mA
DC Output Voltage (VO) ......−0.5V to VCC + 0.5V
DC Output Source
    or Sink Current (IO)............................ ±50 mA
DC VCC or Ground Current
    per Output Pin (ICC or IGND)............... ±50 mA
Junction Temperature (TJ)..........................140°C
Storage Temperature (TSTG)... −65°C to +150°C


Description

The 74ACT16244SSC contain sixteen non-inverting buffers with 3-STATE outputs designed to be employed as a memory and address driver, clock driver, or bus oriented transmitter/receiver. The device is nibble controlled. Each nibble has separate 3-STATE control inputs which can be shorted together for full 16-bit operation.




Parameters:

Technical/Catalog Information74ACT16244SSC
VendorFairchild Semiconductor
CategoryIntegrated Circuits (ICs)
Logic TypeLine Driver, Non-Inverting
Package / Case48-SSOP
PackagingTube
Mounting TypeSurface Mount
Number of Bits per Element4
Number of Elements4 - Quad
Operating Temperature-40°C ~ 85°C
Voltage - Supply4.5 V ~ 5.5 V
Current - Output High, Low75mA, 75mA
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 74ACT16244SSC
74ACT16244SSC
