Product Details

Description



Features:

Buffered Positive edge-triggered clock
Separate control logic for each byte
16-bit version of the ACT374
Outputs source/sink 24 mA
TTL-compatible inputs


Pinout

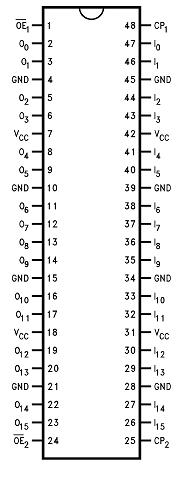

Connection Diagram


Specifications

Supply Voltage (VCC )                      -0.5V to+7.0V
DC Input Diode Current (IIK)
VI = -0.5V                                                    -20 mA
VI = VCC ,0.5V                                              ,20 mA
DC Output Diode Current (IOK)
VI = -0.5V                                                     -20 mA
VI = VCC ,0.5V                                              ,20 mA
DC Output Voltage (VO)              -0.5V to VCC ,0.5V
DC Output Source or Sink Current (IO)       ±50 mA
DC VCC or Ground Current
per Output Pin                                             ±50 mA
Storage Temperature                  -65°C to , 150°C


Description

  The 74ACT16374 contains sixteen non-inverting D-type flip-flops with 3-STATE outputs and is intended for bus oriented applications. The device is byte controlled. A buffered clock (CP) and Output Enable (OE) are common to each byte and can be shorted together for full 16-bit operation.
