74ACT16374SSC

Mounting Style : SMD/SMT
Supply Voltage - Max : 5.5 V
Polarity : Non-Inverting
Input Type : Single-Ended
Output Type : Single-Ended
Maximum Operating Temperature : + 85 C
High Level Output Current : - 24 mA
Low Level Output Current : 24 mA
Packaging : Tube
Number of Circuits : 8
Logic Type : D-Type Flip-Flop
Package / Case : SSOP-48
Logic Family : 74ACT
Propagation Delay Time : 7.9 ns


Features:

Buffered Positive edge-triggered clock
Separate control logic for each byte
16-bit version of the ACT374
Outputs source/sink 24 mA
TTL-compatible inputs

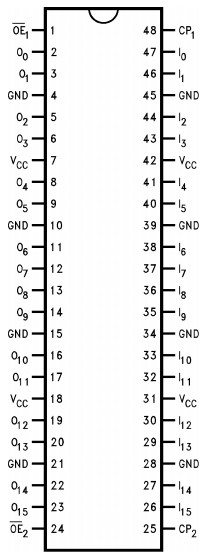

Pinout




Specifications

Supply Voltage (V_CC).................. −0.5V to +7.0V
DC Input Diode Current (I_IK)
    V_I = −0.5V ......................................... −20 mA
    V_I = VCC + 0.5V................................. +20 mA
DC Input Voltage (V_I) .........−0.5V to V_CC + 0.5V
DC Output Diode Current (I_OK)
    V_O = −0.5V........................................  −20 mA
    V_O = V_CC + 0.5V +20 mA
DC Output Voltage (V_O) ......−0.5V to V_CC + 0.5V
DC Output Source
    or Sink Current (I_O)............................ ±50 mA
DC V_CC or Ground Current
    per Output Pin (I_CC or I_GND)............... ±50 mA
Storage Temperature (T_STG)... −65°C to +150°C


Description

The 74ACT16374SSC contains sixteen non-inverting D-type flipflops with 3-STATE outputs and is intended for bus oriented applications. The device is byte controlled. A buffered clock (CP) and Output Enable (OE) are common to each byte and can be shorted together for full 16-bit operation.
