Features:

 Members of the Texas Instruments WidebusE Family
 Inputs Are TTL-Voltage Compatible
 3-State Outputs Drive Bus Lines Directly
 Flow-Through Architecture Optimizes PCB Layout
 Distributed VCC and GND Pin Configuration Minimizes High-Speed Switching Noise
 EPICE (Enhanced-Performance Implanted CMOS) 1-mm Process
 500-mA Typical Latch-Up Immunity at 125°C
 Package Options Include Plastic 300-mil Shrink Small-Outline (DL) Packages Using 25-mil Center-to-Center Pin Spacings and 380-mil Fine-Pitch Ceramic Flat (WD) Packages Using 25-mil Center-to-Center Pin Spacings



Pinout

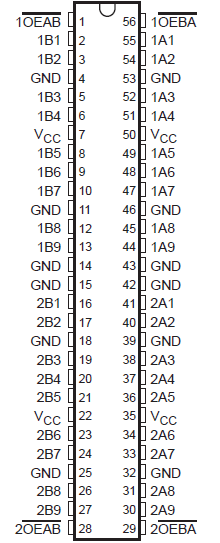

  Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . .. . . . .  . 0.5 V to 7 V
Input voltage range, VI (see Note 1) . . . . . . . . . . . . .  0.5 V to VCC + 0.5 V
Output voltage range, VO (see Note 1) . . . . . .  . . . . . 0.5 V to VCC + 0.5 V
Input clamp current, IIK (VI < 0 or VI > VCC) . . . . . . . . . . . .. . . . . . . ±20 mA
Output clamp current, IOK (VO < 0 or VO > VCC) . . . . . . . . . . . .  . . . ±50 mA
Continuous output current, IO (VO = 0 to VCC) . . . . . . . .  . . . . . . . . ±50 mA
Continuous current through VCC or GND . . . . . . . . . . . . . . . . . . . . . ±450 mA
Maximum package power dissipation at TA = 55°C
(in still air) (see Note 2): DL package . . . . . . . . . . . . . . . . . . . . . . . . . . 1.4 W
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . 65°C to 150°C





Description

The 74ACT16863 are 18-bit noninverting transceivers designed for asynchronous communication between data buses. The control-function implementation minimizes external timing requirements.

The 74ACT16863 can be used as two 9-bit transceivers or one 18-bit transceiver. They allow data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the output-enable (OEAB or OEBA) inputs.

The 74ACT16863 is packaged in TI's shrink small-outline package (DL), which provides twice the I/O pin count and functionality of standard small-outline packages in the same printed-circuit-board area.

The 74ACT16863 is characterized for operation over the full military temperature range of 55°C to 125°C. The 74ACT16863 is characterized for operation from 40°C to 85°C.
