Purchase 74ACT18823, In-stock 74ACT18823 From SeekIC.
Part Number: 74ACT18823
Description: The ACT18823 contains eighteen non-inverting D-type fli...
- Table of contents:
74ACT18823
-
Suppliers
DataSheet
General Description
74ACT18823 General Description
The ACT18823 contains eighteen non-inverting D-type flipflops with 3-STATE outputs and is intended for bus oriented
applications. The device is byte controlled. A buffered clock (CP), Clear (CLR), Clock Enable (EN) and Output Enable
(OE) are common to each byte and can be shorted together for full 18-bit operation.
74ACT18823 Maximum Ratings
Supply Voltage (VCC) . . . . . . . -0.5V to +7.0V
DC Input Diode Current (IIK)
VI = -0.5V . . . . . . . . . . . . . . . . . . -20 mA
VI = VCC +0.5V . . . . . . . . . . . . . . .+20 mA
DC Output Diode Current (IOK)
VO = -0.5V . . . . . . . . . . . . . . . . . . . -20 mA
VO = VCC +0.5V . . . . . . . . . . . . . . . +20 mA
DC Output Voltage (VO) . . -0.5V to VCC + 0.5V
DC Output Source/Sink Current (IO) . . ± 50 mA
DC VCC or Ground Current
Per Output Pin . . . . . . . . . . . . . . . ± 50 mA
Junction Temperature
PDIP/SOIC . . . . . . . . . . . . . . . . . +140°C
Storage Temperature . . . . . -65°C to +150°C
DC Input Diode Current (IIK)
VI = -0.5V . . . . . . . . . . . . . . . . . . -20 mA
VI = VCC +0.5V . . . . . . . . . . . . . . .+20 mA
DC Output Diode Current (IOK)
VO = -0.5V . . . . . . . . . . . . . . . . . . . -20 mA
VO = VCC +0.5V . . . . . . . . . . . . . . . +20 mA
DC Output Voltage (VO) . . -0.5V to VCC + 0.5V
DC Output Source/Sink Current (IO) . . ± 50 mA
DC VCC or Ground Current
Per Output Pin . . . . . . . . . . . . . . . ± 50 mA
Junction Temperature
PDIP/SOIC . . . . . . . . . . . . . . . . . +140°C
Storage Temperature . . . . . -65°C to +150°C
74ACT18823 Features
·Broadside pinout allows for easy board layout
· Separate control logic for each byte
·Extra data width for wider address/data paths or buses carrying parity
· Outputs source/sink 24 mA
·TTL-compatible inputs
· Separate control logic for each byte
·Extra data width for wider address/data paths or buses carrying parity
· Outputs source/sink 24 mA
·TTL-compatible inputs

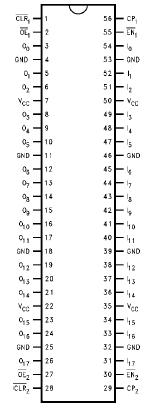

74ACT18823 Connection Diagram
74ACT18823
PDF/DataSheet Download
- Datasheet: 74ACT18823
- File Size: 61971 KB
- Manufacturer: FAIRCHILD [Fairchild Semiconductor]
- Click here to Download
