74ACTQ16374SSC

Mounting Style : SMD/SMT
Supply Voltage - Max : 5.5 V
Polarity : Non-Inverting
Input Type : Single-Ended
Output Type : Single-Ended
Maximum Operating Temperature : + 85 C
High Level Output Current : - 24 mA
Low Level Output Current : 24 mA
Packaging : Tube
Logic Type : D-Type Flip-Flop
Package / Case : SSOP-48
Logic Family : 74ACT
Number of Circuits : 16
Propagation Delay Time : 7.9 ns


Features:

Utilizes Fairchild FACT Quiet Series technology
Guaranteed simultaneous switching noise level and dynamic threshold performance
Guaranteed pin-to-pin output skew
Buffered Positive edge-triggered clock
Separate control logic for each byte
16-bit version of the ACTQ374
Outputs source/sink 24 mA
Additional specs for Multiple Output Switching
Output loadings specs for both 50 pF and 250 pF loads

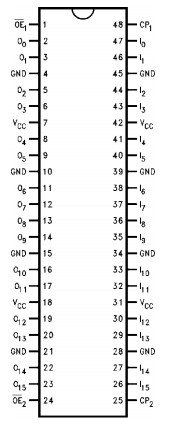

Pinout




Specifications

Supply Voltage (V_CC).................. −0.5V to +7.0V
DC Input Diode Current (I_IK)
    V_I = −0.5V ......................................... −20 mA
    V_I = VCC + 0.5V................................. +20 mA
DC Input Voltage (V_I) .........−0.5V to V_CC + 0.5V
DC Output Diode Current (I_OK)
    V_O = −0.5V........................................  −20 mA
    V_O = V_CC + 0.5V +20 mA
DC Output Voltage (V_O) ......−0.5V to V_CC + 0.5V
DC Output Source
    or Sink Current (I_O)............................ ±50 mA
DC V_CC or Ground Current
    per Output Pin (I_CC or I_GND)............... ±50 mA
Storage Temperature (T_STG)... −65°C to +150°C


Description

The 74ACTQ16374SSC contains sixteen non-inverting D-type flipflops with 3-STATE outputs and is intended for bus oriented applications. The device is byte controlled. A buffered clock (CP) and Output Enable (OE) are common to each byte and can be shorted together for full 16-bit operation.

The 74ACTQ16374SSC utilizes Fairchild Quiet Series technology to guarantee quiet output switching and improved dynamic threshold performance. FACT Quiet Series features GTO output control for superior performance.

Parameters:

Technical/Catalog Information	74ACTQ16374SSC
Vendor	Fairchild Semiconductor
Category	Integrated Circuits (ICs)
Mounting Type	Surface Mount
Package / Case	48-SSOP
Function	Standard
Number of Bits per Element	8
Number of Elements	2 - Dual
Current - Output High, Low	24mA, 24mA
Output Type	Tri-State Non Inverted
Trigger Type	Positive Edge
Type	D-Type Bus
Packaging	Tube
Operating Temperature	-40°C ~ 85°C
Delay Time - Propagation	5.1ns
Frequency - Clock	71MHz
Voltage - Supply	4.5 V ~ 5.5 V
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	74ACTQ16374SSC 74ACTQ16374SSC
