Part Number: 74ACTQ16646



MFG: FAIRCHILD

Package Cooled: SMD

D/C: 05+

Description: The ACTQ16646 contains sixteen non-inverting bidirectional registered bus transceivers providing multi...


Urgent Purchase

74ACTQ16646 General Description


The ACTQ16646 contains sixteen non-inverting bidirectional registered bus transceivers providing multiplexed transmission of data directly from the input bus or from the internal storage registers. Each byte has separate control inputs which can be shorted together for full 16-bit operation. The DIR inputs determine the direction of data flow through the device. The CPAB and CPBA inputs load data into the registers on the LOW-to-HIGH transition. The ACTQ16646 utilizes Fairchild Quiet Series™ technology to guarantee quiet output switching and improved dynamic threshold performance. FACT Quiet Series™ features GTO™ output control and undershoot corrector for superior performance.

74ACTQ16646 Maximum Ratings

Supply Voltage (VCC) ................-0.5V to +7.0V
DC Input Diode Current (IIK)
VI = -0.5V ...........................................-20 mA
VI = VCC +0.5V ..................................+20 mA
DC Output Diode Current (IOK)
VO = -0.5V ..........................................-20 mA
VO = VCC + 0.5V ...............................+20 mA
DC Output Voltage (VO) ....-0.5V to VCC + 0.5V
DC Output Source/Sink Current (IO) ....±50 mA
DC VCC or Ground Current
per Output Pin ..................................±50 mA
Storage Temperature.......... -65°C to +150°C

74ACTQ16646 Features

·Utilizes Fairchild FACT Quiet Series technology
·Guaranteed simultaneous switching noise level and dynamic threshold performance
·Guaranteed pin-to-pin output skew
·Independent registers for A and B buses
·Multiplexed real-time and stored data transfers
·Separate control logic for each byte
·16-bit version of the ACTQ646
·Outputs source/sink 24 mA
·Additional specs for Multiple Output Switching
·Output loading specs for both 50 pF and 250 pF loads

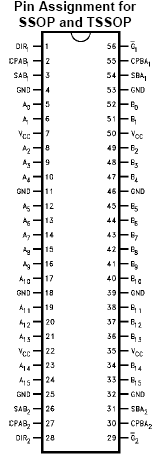

74ACTQ16646 Connection Diagram

74ACTQ16646 Connection Diagram

74ACTQ16646 datasheet

74ACTQ16646
PDF/DataSheet Download

  • Datasheet: 74ACTQ16646
  • File Size: 94396 KB
  • Manufacturer: FAIRCHILD [Fairchild Semiconductor]
  • Click here to Download
