Part Number: 74ACTQ18823



MFG: FAIRCHILD

Package Cooled: 04+

D/C: SSOP-7.2-56P

Description: The ACTQ18823 contains eighteen non-inverting D-type flip-flops with 3-STATE outputs and is intended for bus oriented a...


Urgent Purchase

74ACTQ18823 General Description


The ACTQ18823 contains eighteen non-inverting D-type flip-flops with 3-STATE outputs and is intended for bus oriented applications. The device is byte controlled. A buffered clock (CP), Clear (CLR), Clock Enable (EN) and Output Enable (OE) are common to each byte and can be shorted together for full 18-bit operation.

The ACTQ18823 utilizes Fairchild's Quiet Series technology to guarantee quiet output switching and improved dynamic threshold performance. FACT Quiet Series features GTO output control and undershoot corrector for superior performance.

74ACTQ18823 Maximum Ratings

Supply Voltage (VCC)                               −0.5V to +7.0V
DC Input Diode Current (IIK)
VI = −0.5V                                                           −20 mA
VI = VCC +0.5V                                                    +20 mA
DC Output Diode Current (IOK)
VO = −0.5V                                                          −20 mA
VO = VCC                                                   +0.5V +20 mA
DC Output Voltage (VO)                   −0.5V to VCC + 0.5V
DC Output Source/Sink Current (IO)                   ± 50 mA
DC VCC or Ground Current
Per Output Pin                                                     ± 50 mA
Junction Temperature
PDIP/SOIC                                                            +140°C
Storage Temperature                          −65°C to +150°C
ESD Last Passing Voltage (Min)                               4000V

74ACTQ18823 Features

`Utilizes Fairchild's FACT Quiet Series technology
`Broadside pinout allows for easy board layout
`Guaranteed simultaneous switching noise level and ynamic threshold performance
`Guaranteed pin-to-pin output skew
`Separate control logic for each byte
`Extra data width for wider address/data paths or buses arrying parity
`Outputs source/sink 24 mA
`Additional specs for Multiple Output Switching
`Output loading specs for both 50 pF and 250 pF loads

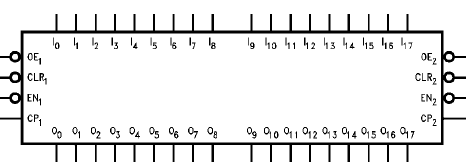

74ACTQ18823 Connection Diagram

74ACTQ18823 Connection Diagram
