Part Number: 74ACTQ18825



MFG: FAIRCHILD

Package Cooled: SSOP-56

D/C: 02+

Description: The ACTQ18825 contains eighteen non-inverting buffers with 3-STATE outputs designed to be ...


Urgent Purchase

74ACTQ18825 General Description


The ACTQ18825 contains eighteen non-inverting buffers with 3-STATE outputs designed to be employed as a memory and address driver, clock driver, or bus oriented transmitter/ receiver. The device is byte controlled. Each byte has separate 3-STATE control inputs which can be shorted together for full 18-bit operation.

The ACTQ18825 utilizes Fairchild FACT Quiet Seriesä technology to guarantee quiet output switching and improved dynamic threshold performance. FACT Quiet Series features GTOä output control and undershoot corrector for superior performance.

74ACTQ18825 Maximum Ratings

Supply Voltage (VCC)                      -0.5V to +7.0V
DC Input Diode Current (IIK)
VI = -0.5V                                                   -20 mA
VI = VCC                                         +0.5V +20 mA
DC Output Diode Current (IOK)
VO = -0.5V                                                 -20 mA
VO = VCC                                       +0.5V  +20 mA
DC Output Voltage (VO)       -0.5V to VCC  + 0.5V
DC Output Source/Sink Current (IO)       ±50  mA
DC VCC or Ground Current
Per Output Pin ±50 mA
Storage Temperature             -65°C to +150°C
ESD Last Passing Voltage (Min)                 4000V

74ACTQ18825 Features

· Utilizes Fairchild FACT Quiet Series technology
· Broadside pinout allows for easy board layout
· Guaranteed simultaneous switching noise level and dynamic threshold performance
· Guaranteed pin-to-pin output skew
· Separate control logic for each byte
· Extra data width for wider address/data paths or buses carrying parity
· Outputs source/sink 24 mA
· Additional specs for Multiple Output Switching
· Output loading specs for both 50 pF and 250 pF loads

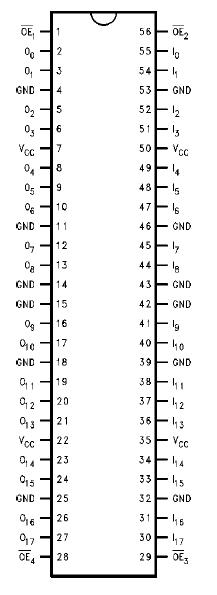

74ACTQ18825 Connection Diagram

74ACTQ18825 Connection Diagram

74ACTQ18825 datasheet

74ACTQ18825
PDF/DataSheet Download

  • Datasheet: 74ACTQ18825
  • File Size: 80582 KB
  • Manufacturer: FAIRCHILD [Fairchild Semiconductor]
  • Click here to Download
