Part Number: 74AHC541D



MFG: PHL





Description: The 74AHC541; 74AHCT541 is a high-speed Si-gate CMOS device.The 74AHC541; 74AHCT541 are octal non-inverting buf...


Urgent Purchase

74AHC541D General Description


The 74AHC541; 74AHCT541 is a high-speed Si-gate CMOS device.

The 74AHC541; 74AHCT541 are octal non-inverting buffer/line drivers with 3-state bus compatible outputs.

The 3-state outputs are controlled by the output enable inputs OE0 and OE1.

A HIGH on OEn causes the outputs to assume a high-impedance OFF-state.

74AHC541D Maximum Ratings

Symbol Parameter Conditions Min Max Unit
Vcc supply voltage   -0.5 +7.0 V
VI input voltage   -0.5 +7.0 V
IIk input clamping current VI < -0.5 V*1 -20 - mA
IoK output clamping current VO < -0.5 V or VO > VCC + 0.5 V*1 - ±20 mA
IO output current VO = -0.5 V to (VCC + 0.5 V) - ±25 mA
IO supply current   - 75 mA
IO ground current   -75 - mA
Tstg storage temperature   -65 +150
PTOT total power dissipation Tamb = -40 to +125
  SO20 package *2 - 500 mW
  TSSOP20 package *3 - 500 mW
  DHVQFN20 package *4 - 500 mW
[1] The input and output voltage ratings may be exceeded if the input and output current ratings are observed.
[2] Ptot derates linearly with 8 mW/K above 70 .
[3] Ptot derates linearly with 5.5 mW/K above 60 .
[4] Ptot derates linearly with 4.5 mW/K above 60 .

74AHC541D Features

·Balanced propagation delays
·All inputs have a Schmitt-trigger action
·Inputs accepts voltages higher than VCC
·For 74AHC541 only: operates with CMOS input levels
·For 74AHCT541 only: operates with TTL input levels
·ESD protection:
·HBM JESD22-A114E exceeds 2000 V
·MM JESD22-A115-A exceeds 200 V
·CDM JESD22-C101C exceeds 1000 V
·Multiple package options
·Specified from -40 °C to +85 °C and from -40 °C to +125 °C

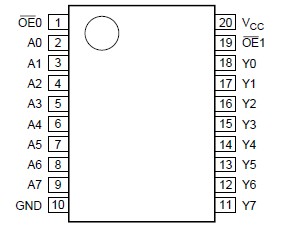

74AHC541D Connection Diagram

74AHC541D Connection Diagram
