General Description
74ALS648 General Description
The 74ALS646/74ALS646-1 and 74ALS648/74ALS648-1 transceivers/registers consist of bus transceiver circuits with 3-State outputs, D-type flip-flops, and control circuitry arranged for multiplexed transmission of data directly from the input bus or the internal registers. Data on the A or B bus will be clocked into the registers as the appropriate clock pin goes High. Output enable (OE) and direction (DIR) and select (SAB, SBA) pins are provided for bus management.
The 74ALS646-1 and 74ALS648-1 will sink 48mA if the VCC is limited to 5.0V ±0.25V.
74ALS648 Maximum Ratings
| SYMBOL | PARAMETER | RATING | UNIT | |
| VCC | Supply voltage | 0.5 to +7.0 | V | |
| VIN | Input voltage | 0.5 to +7.0 | V | |
| IIN | Input current | 30 to +5 | mA | |
| VOUT | Voltage applied to output in high output state | 0.5 to VCC | V | |
| IOUT | Current applied to output in Low output state | All versions | 48 | mA |
| -1 version | 96 | mA | ||
| Tamb | Operating free-air temperature range | 0 to +70 | °C | |
| Tstg | Storage temperature range | 65 to +150 | °C | |
74ALS648 Features
Combines 74ALS245 and two 74ALS374 type functions in one chip
Independent registers for A and B buses
Multiplexed real-time and stored data
Choice of non-inverting and inverting data paths
3-State outputs
The -1 version sink 48mA IOL within the ±5% VCC range
Independent registers for A and B buses
Multiplexed real-time and stored data
Choice of non-inverting and inverting data paths
3-State outputs
The -1 version sink 48mA IOL within the ±5% VCC range

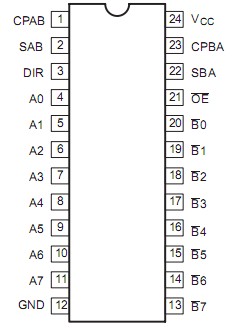

74ALS648 Connection Diagram
74ALS648-1
