General Description
74ALVT162241 General Description
The 74ALVT162241 is a high-performance BiCMOS product designed for VCC operation at 2.5V or 3.3V with I/O compatibility up to 5V.
This device is a 16-bit buffer that is ideal for driving bus lines. The device features four Output Enables (1OE, 2OE, 3OE, 4OE), each controlling four of the 3-State outputs.
The 74ALVT162241 is designed with 30 series resistance in bothHigh and Low output stages. This design reduces the line noise in applications such as memory address drivers, clock drivers and bus receivers/transmitters. The series termination resistors reduce overshoot and undershoot and are ideal for driving memory arrays.
74ALVT162241 Maximum Ratings
|
SYMBOL |
PARAMETER |
CONDITIONS |
RATING |
UNIT |
|
VCC |
DC supply voltage |
0.5 to +4.6 |
V | |
|
IIK |
DC input diode current | VI<0 |
-50 |
mA |
|
VI |
DC input voltage3 |
-0.5to+7.0 |
V | |
|
IOK |
DC output diode current | VO < 0 |
-50 |
mA |
|
VO |
DC output voltage | Output in Off or High state |
-0.5to+7.0 |
V |
|
IO |
DC output source or sink current | Output in Low state |
128 |
mA |
| Output in High state |
-64 | |||
|
Tstg |
Storage temperature range |
-65to+150 |
74ALVT162241 Features
• 16-bit bus interface
• 5V I/O Compatible
• 3-State buffers
• Output capability: +12mA/-12mA
• TTL input and output switching levels
• Input and output interface capability to systems at 5V supply
• Bus-hold data inputs eliminate the need for external pull-up resistors to hold unused inputs
• Outputs include series resistance of 30 making externaltermination resistors unnecessary
• Live insertion/extraction permitted
• Power-up 3-State
• No bus current loading when output is tied to 5V bus
• Latch-up protection exceeds 500mA per JEDEC Std 17
• ESD protection exceeds 2000V per MIL STD 883 Method 3015 and 200V per Machine Model
• 5V I/O Compatible
• 3-State buffers
• Output capability: +12mA/-12mA
• TTL input and output switching levels
• Input and output interface capability to systems at 5V supply
• Bus-hold data inputs eliminate the need for external pull-up resistors to hold unused inputs
• Outputs include series resistance of 30 making externaltermination resistors unnecessary
• Live insertion/extraction permitted
• Power-up 3-State
• No bus current loading when output is tied to 5V bus
• Latch-up protection exceeds 500mA per JEDEC Std 17
• ESD protection exceeds 2000V per MIL STD 883 Method 3015 and 200V per Machine Model

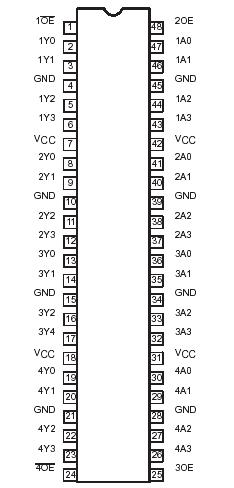

74ALVT162241 Connection Diagram
74ALVT162241
