Purchase 74ALVT162244, In-stock 74ALVT162244 From SeekIC.
MFG:PHI Package Cooled:TSSOP/48
Part Number: 74ALVT162244
MFG: PHI
Package Cooled: TSSOP/48
Description: The 74ALVT162244 is a high-performance BiCMOS productdesigned for V
- Table of contents:
74ALVT162244
-
Suppliers
DataSheet
General Description
74ALVT162244 General Description
The 74ALVT162244 is a high-performance BiCMOS productdesigned for VCC operation at 2.5V or 3.3V with I/O compatibility up to 5V.
The 74ALVT162244 is designed with 30? series resistance in both the High and Low states of the output. This design reduces line noise in applications such as memory address drivers, clock drivers, and bus receivers/transmitters.
This device is a 16-bit buffer and line driver featuring non-inverting 3-State bus outputs. The device can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer.
74ALVT162244 Maximum Ratings
| SYMBOL | PARAMETER | CONDITIONS | RATING | UNIT |
| VCC | DC supply voltage | -0.5 to +4.6 | V | |
| IIK | DC input diode current | VI < 0 | -50 | mA |
| VI | DC input voltage3 | -0.5 to +7.0 | V | |
| IOK | DC output diode current | VO < 0 | -50 | mA |
| VOUT | DC output voltage3 | Output in Off or High state | -0.5 to +7.0 | V |
| IOUT | DC output current | Output in Low state | 128 | mA |
| Output in High state | -64 | |||
| Tstg | Storage temperature range | -65 to +150 | °C |
74ALVT162244 Features
16-bit bus interface
3-State buffers
5V I/O compatibile
Output capability: +12mA/-12mA
TTL input and output switching levels
Input and output interface capability to systems at 5V supply
Bus-hold data inputs eliminate the need for external pull-up resistors to hold unused inputs
Live insertion/extraction permitted
Outputs include series resistance of 30 making external terminating resistors unnecessary
Power-up 3-State
No bus current loading when output is tied to 5V bus
Latch-up protection exceeds 500mA per JEDEC Std 17
ESD protection exceeds 2000V per MIL STD 883 Method 3015 and 200V per Machine Model
3-State buffers
5V I/O compatibile
Output capability: +12mA/-12mA
TTL input and output switching levels
Input and output interface capability to systems at 5V supply
Bus-hold data inputs eliminate the need for external pull-up resistors to hold unused inputs
Live insertion/extraction permitted
Outputs include series resistance of 30 making external terminating resistors unnecessary
Power-up 3-State
No bus current loading when output is tied to 5V bus
Latch-up protection exceeds 500mA per JEDEC Std 17
ESD protection exceeds 2000V per MIL STD 883 Method 3015 and 200V per Machine Model

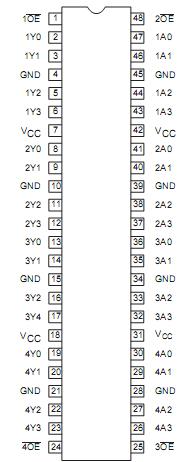

74ALVT162244 Connection Diagram
74ALVT162244
