74ALVT16731

Features: • 5V I/O Compatible• 3-State outputs• Output capability: +64 mA/-32 mA• Bus-hold data inputs eliminate the need for external pull-up resistors to hold unused inputs• Live insertion/extraction permitted• Power-up reset• Power-up 3-State• Pos...

product image

74ALVT16731 Picture
See larger image
SeekIC No. : 004249503 Detail

74ALVT16731: Features: • 5V I/O Compatible• 3-State outputs• Output capability: +64 mA/-32 mA• Bus-hold data inputs eliminate the need for external pull-up resistors to hold unused inputs...

74ALVT16731 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74ALVT16731
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/2

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 5V I/O Compatible
• 3-State outputs
• Output capability: +64 mA/-32 mA
• Bus-hold data inputs eliminate the need for external pull-up resistors to hold unused inputs
• Live insertion/extraction permitted
• Power-up reset
• Power-up 3-State
• Positive edge triggered registers
• Latch-up protection exceeds 500 mA per JEDEC JC40.2 Std 17
• ESD protection exceeds 2000 V per MIL STD 883 Method 3015 and 200 V per machine model
• Bus hold data inputs eliminate the need for external pull-up resistors to hold unused inputs


Pinout

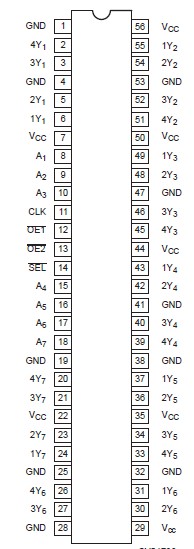

Connection Diagram


Specifications

SYMBOL
PARAMETER
CONDITIONS
RATING
UNIT
VCC
 DC supply voltage
-0.5 to +4.6
V
IIK
 DC input diode current VI < 0
-50
mA
VI
 DC input voltage3
-0.5 to +7.0
v
IOK
 DC output diode current VO < 0
-50
mA
VOUT
 DC output voltage3 Output in Off or High state
-0.5 to +7.0
V
IOUT
 DC output current Output in Low state
128
mA
Output in High state
-64
Tstg
 Storage temperature range
-65 to +150
°C
NOTES:
1. Stresses beyond those listed may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
2. The performance capability of a high-performance integrated circuit in conjunction with its thermal environment can create junction temperatures which are detrimental to reliability. The maximum junction temperature of this integrated circuit should not exceed 150°C.
3. The input and output negative voltage ratings may be exceeded if the input and output clamp current ratings are observed.


Description

The 74ALVT16731 is a high-performance BiCMOS product designed for VCC operation at 2.5V to 3.3V with I/O compatibility up to 5V.

The 74ALVT16731 is a 1-to-4 address register/driver featuring non-inverting 3-State outputs. The state of the outputs are controlled by two enable inputs (OE1 and OE2). Each enable input controls the state of two of the four common outputs for each input. When an OEn input is a logic High, the respective outputs will be in the high impedance state. When an OEn input of the 74ALVT16731 is a logic Low, the respective outputs are active. The device can be configured for a transparent mode from input to output or a register mode by the SEL input. When SEL is a logic High the device is configured for transparent mode and when SEL is a logic Low it is configured for register mode. While in the register mode the output follows the input on the rising edge of the CLK input. The function of the data registers is not effected by either SEL or OEn.
