Product Details

Description



Features:

• Multiple VCC and GND pins minimize switching noise
• 5V I/O Compatible
• Live insertion/extraction permitted
• 3-State output buffers
• Power-up 3-State
• Output capability: +64mA/-32mA
• Latch-up protection exceeds 500mA per Jedec JC40.2 Std 17
• ESD protection exceeds 2000 V per MIL STD 883 Method 3015
   and 200 V per Machine Model
• Bus hold data inputs eliminate the need for external pull-up
   resistors to hold unused inputs


Pinout

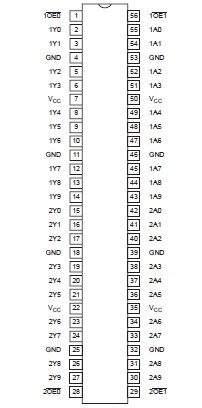

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS RATING UNIT
VCC DC supply voltage   0.5 to +7.0 V
IIK DC input diode current VI < 0 18 mA
VI DC input voltage3   -1.2 to +7.0 V
IOK DC output diode current VO < 0 50 mA
VOUT DC output voltage3 Output in Off or High state -0.5 to +5.5 V
IOUT DC output current output in Low state 128 mA
Tstg Storage temperature range   -65 to 150 °C


1. Stresses beyond those listed may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
2. The performance capability of a high-performance integrated circuit in conjunction with its thermal environment can create junction temperatures which are detrimental to reliability. The maximum junction temperature of this integrated circuit should not exceed 150°C.
3. The input and output voltage ratings may be exceeded if the input and output current ratings are observed.




Description

The 74ALVT16827 high-performance BiCMOS device combines low static and dynamic power dissipation with high speed and high output drive. It is designed for VCC operation at 2.5V or 3.3V with I/O compatibility to 5V.

The 74ALVT16827 20-bit buffers provide high performance bus interface buffering for wide data/address paths or buses carrying parity. They have NOR Output Enables (nOE1, nOE2) for maximum control flexibility.
