74ALVT16953

Features:

• Two 8-bit registered transceivers
• 5V I/O Compatible
• 3-State buffers
• Output capability: +64mA/32mA
• TTL input and output switching levels
• Input and output interface capability to systems at 5V supply
• Bus hold data inputs eliminate the need for external pull-up resistors to hold unused inputs
• Live insertion/extraction permitted
• Power-up 3-State
• Power-up reset
• No bus current loading when output is tied to 5V bus
• Latch-up protection exceeds 500mA per JEDEC Std 17
• ESD protection exceeds 2000V per MIL STD 883 Method 3015 and 200V per Machine Model

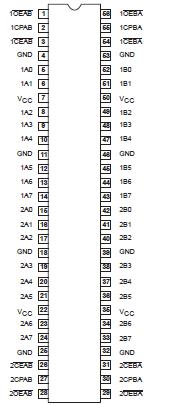

Pinout




Specifications

SYMBOL	PARAMETER	CONDITIONS	RATING	UNIT
VCC	DC supply voltage		0.5 to 7.0	V
IIK	DC input diode current	VI < 0	18	mA
VI	DC input voltage3		1.2 to +7.0	v
IOK	DC output diode current	VO < 0	50	mA
VOUT	DC output voltage3	Output in Off or High state	0.5 to +5.5	v
IOUT	DC output current	Output in Low state	128	mA
		Output in High state	64
Tstg	Storage temperature range		65 to +150	°C

Description

The 74ALVT16953 is a high-performance BiCMOS product designed for V_CC operation at 2.5V or 3.3V with I/O compatibility up to 5V.

The 74ALVT16953 is a dual octal registered inverting transceiver.Two 8-bit registers store data flowing in both directions between two bidirectional buses. Data applied to the inputs is entered and stored on the rising edge of the Clock (nCPXX) provided that the Clock Enable (nCEXX) is Low. The data is then present at the 3-State output buffers, but is only accessible when the Output Enable (nOEXX) is Low. Data flow from A inputs to B outputs is the same as
for B inputs to A outputs.
