74AVC16836

Features: Wide supply voltage range of 1.2 V to 3.6 VComplies with JEDEC standard no. 8-1A/5/7.CMOS low power consumptionInput/output tolerant up to 3.6 VDCO (Dynamic Controlled Output) circuit dynamically changesoutput impedance, resulting in noise reduction without speed degradationLow inductanc...

product image

74AVC16836 Picture
SeekIC No. : 004249567 Detail

74AVC16836: Features: Wide supply voltage range of 1.2 V to 3.6 VComplies with JEDEC standard no. 8-1A/5/7.CMOS low power consumptionInput/output tolerant up to 3.6 VDCO (Dynamic Controlled Output) circuit dyna...

floor Price/Ceiling Price

Part Number:
74AVC16836
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/28

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Wide supply voltage range of 1.2 V to 3.6 V
Complies with JEDEC standard no. 8-1A/5/7.
CMOS low power consumption
Input/output tolerant up to 3.6 V
DCO (Dynamic Controlled Output) circuit dynamically changes
output impedance, resulting in noise reduction without speed
   degradation
Low inductance multiple VCC and GND pins for minimum noise
   and ground bounce
Power off disables 74AVC16836 outputs, permitting Live Insertion



Pinout

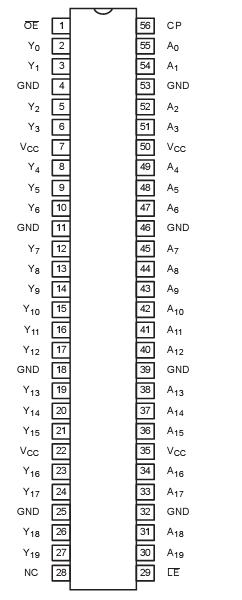

  Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS RATING UNIT
VCC DC supply voltage
  0.5 to +4.6 V
IIK DC input diode current VI 0
-50 mA
VI DC input voltage
For all inputs1
0.5 to 4.6 V
IOK DC output diode current VO VCC or VO 0
±50 mA
VO DC output voltage; output 3-State Note 1 0.5 to 4.6 V
VO DC output voltage;
output HIGH or LOW state
Note 1 0.5 to VCC +0.5
V
IO DC output source or sink current VO = 0 to VCC
±50 mA
IGND , ICC
DC VCC or GND current
  ±100 mA
Tstg Storage temperature range   65 to +150
PTOT Power dissipation per package
plastic thin-medium-shrink (TSSOP)
For temperature range: 40 to +125 °C
above +55°C derate linearly with 8 mW/K
600 mW



Description

The 74AVC16836 is a 20-bit universal bus driver. Data flow is controlled by output enable (OE ), latch enable (LE ) and clock inputs(CP).

This product is designed to have an extremely fast propagation delay and a minimum amount of power consumption.

To ensure the high-impedance state of the 74AVC16836 during power up or power down,OE  should be tied to VCC  through a pullup resistor (Live Insertion).

 A Dynamic Controlled Output (DCO) circuitry of the 74AVC16836 is implemented to support termination line drive during transient. See the graphs on page 8 for typical curves.
