74F219 General Description
74F219 Maximum Ratings
Storage Temperature .....................................................................................-65 to +150
Ambient Temperature under Bias ...................................................................-55 to +125
Junction Temperature under Bias ...................................................................-55 to +175
Plastic ..........................................................................................................-55 to +150
VCC Pin Potential to
Ground Pin ....................................................................................................-0.5V to +7.0V
Input Voltage (Note 2) .....................................................................................-0.5V to +7.0V
Input Current (Note 2) ...............................................................................-30 mA to +5.0 mA
Voltage Applied to Output
in HIGH State (with VCC e 0V)
Standard Output ..............................................................................................-0.5V to VCC
TRI-STATE Output .........................................................................................-0.5V to +5.5V
Current Applied to Output
in LOW State (Max) .........................................................................twice the rated IOL (mA)
74F219 Features
* TRI-STATE outputs for data bus applications
* Buffered inputs minimize loading
* Address decoding on-chip
* Diode clamped inputs minimize ringing
* Available in SOIC (300 mil only)

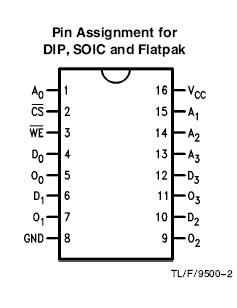

74F219 Connection Diagram
