Features:

* Multiplexed parallel I/O ports
* Separate serial input and output
* Sign extend function
* TRI-STATE outputs for bus applications


Pinout

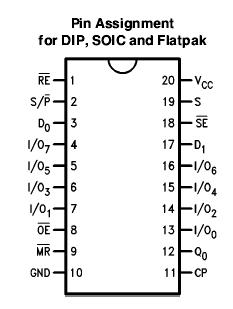

Connection Diagram


Specifications

Storage Temperature .........................................................................................-65 to +150
Ambient Temperature under Bias .......................................................................-55 to +125
Junction Temperature under Bias .......................................................................-55 to +175
   Plastic ..............................................................................................................-55 to +150
VCC Pin Potential to
   Ground Pin ........................................................................................................-0.5V to +7.0V
Input Voltage (Note 2) .........................................................................................-0.5V to +7.0V
Input Current (Note 2) ...................................................................................-30 mA to +5.0 mA
Voltage Applied to Output
   in HIGH State (with VCC e 0V)
   Standard Output ..................................................................................................-0.5V to VCC
   TRI-STATE. Output ...........................................................................................-0.5V to +5.5V
Current Applied to Output
   in LOW State (Max) ..............................................................................twice the rated IOL (mA)


Description

The 74F322 is an 8-bit shift register with provision for either serial or parallel loading and with TRI-STATE. parallel outputs plus a bi-state serial output. Parallel data inputs and parallel outputs are multiplexed to minimize pin count. State changes of the 74F322 are initiated by the rising edge of the clock. Four synchronous modes of operation are possible: hold (store), shift right with serial entry, shift right with sign extend and parallel load. An asynchronous Master Reset (MR) input overrides clocked operation and clears the register.
