Part Number: 74F863
Description: The 74F862 and 74F863 bus transceivers provide high performance bus interface buffering for wide data/address paths of ...
- Table of contents:
74F863
-
Suppliers
DataSheet
General Description
74F863 General Description
The 74F862 and 74F863 bus transceivers provide high performance bus interface buffering for wide data/address paths of buses carrying parity. The 74F863 9-bit bus transceiver has NOR-ed transmit and receive output enables for maximum control flexibility.
74F863 Maximum Ratings
| SYMBOL | PARAMETER | RATING | UNIT |
| VCC | Supply voltage | 0.5 to +7.0 | V |
| VIN | Input voltage | 0.5 to +7.0 | V |
| IIN | Input current | 30 to +5 | mA |
| VOUT | Voltage applied to output in High output state | 0.5 to +5.5 | V |
| IOUT | Current applied to output in Low output state | 128 | mA |
| Ta | Operating free-air temperature range | 0 to +70 | |
| Tstg | Storage temperature | 65 to +150 |
74F863 Features
• Provide high performance bus interface buffering for wide data/address paths or buses carrying parity
• High impedance NPN base inputs for reduced loading (20mA in High and Low states)
• IIL is 20mA vs. 1000mA for AM29861 series
• Buffered control inputs for light loading, or increased fan-in as required with MOS microprocessors
• Positive and negative over-shoots are clamped to ground
• 3-State outputs glitch free during power-up and power-down
• Slim dual In-line (DIP) 300mil package
• Broadside pinout compatible with AMD AM2986229863
• Outputs sink 64mA
• High impedance NPN base inputs for reduced loading (20mA in High and Low states)
• IIL is 20mA vs. 1000mA for AM29861 series
• Buffered control inputs for light loading, or increased fan-in as required with MOS microprocessors
• Positive and negative over-shoots are clamped to ground
• 3-State outputs glitch free during power-up and power-down
• Slim dual In-line (DIP) 300mil package
• Broadside pinout compatible with AMD AM2986229863
• Outputs sink 64mA

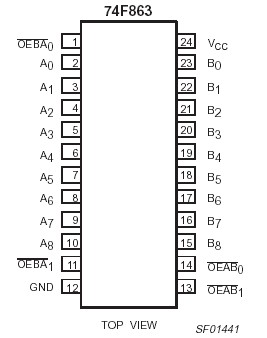

74F863 Connection Diagram
74F863
