74FCT573T

Features: •Std., A, and C grades•Low input and output leakage 1A (max.)•CMOS power levels•True TTL input and output compatibility: VOH = 3.3V (typ.) VOL = 0.3V (typ.)•High Drive outputs (-15mA IOH, 48mA IOL)•Meets or exceeds JEDEC standard 18 specifications̶...

product image

74FCT573T Picture
See larger image
SeekIC No. : 004250473 Detail

74FCT573T: Features: •Std., A, and C grades•Low input and output leakage 1A (max.)•CMOS power levels•True TTL input and output compatibility: VOH = 3.3V (typ.) VOL = 0.3V (typ.)•H...

74FCT573T Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
74FCT573T
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•Std., A, and C grades
•Low input and output leakage 1A (max.)
•CMOS power levels
•True TTL input and output compatibility: VOH = 3.3V (typ.) VOL = 0.3V (typ.)
•High Drive outputs (-15mA IOH, 48mA IOL)
•Meets or exceeds JEDEC standard 18 specifications
•Military product compliant to MIL-STD-883, Class B and DESC listed (dual marked)
•Power off disable outputs permit "live insertion"
•Available in the following packages: Industrial: SOIC, SSOP, QSOP, TSSOP Military: CERDIP, LCC




Pinout

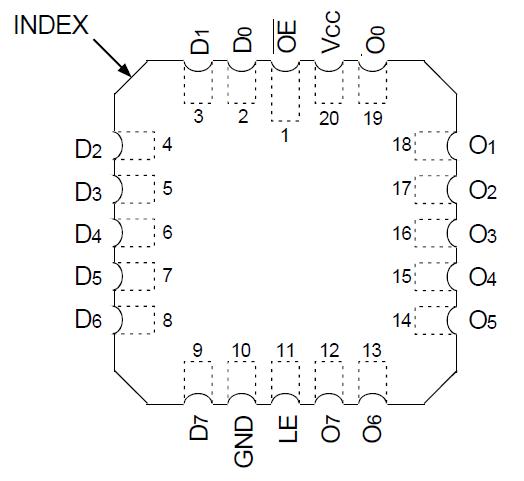

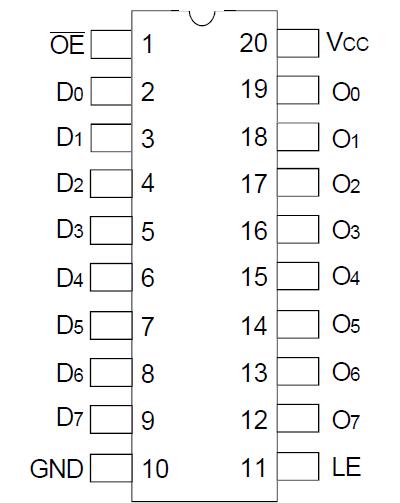

Connection Diagram Connection Diagram


Specifications

Symbol Description Max Unit
VTERM(2) Terminal Voltage with Respect to GND 0.5 to +7 V
VTERM(3) Terminal Voltage with Respect to GND 0.5 to VCC+0.5 V
TSTG Storage Temperature 65 to +150
IOUT DC Output Current 60 to +120 mA



Description

The 74FCT573T is an octal transparent latch built using an advanced dual metal CMOS technology. These octal latches have 3-state outputs and are intended for bus oriented applications. The flip-flops appear transparent to the data when Latch Enable (LE) is high. When LE of the 74FCT573T is low, the data that meets the set-up time is latched. Data appears on the bus when the Output Enable (OE) is low. When OE is high, the bus output is in the high-impedance state.
