Part Number: 74FST3126DR2
Description: The ON Semiconductor 74FST3126 is a quad, high performance switch. The device is CMOS TTL compatible w...
- Table of contents:
74FST3126DR2
-
Suppliers
DataSheet
General Description
74FST3126DR2 General Description
The ON Semiconductor 74FST3126 is a quad, high performance switch. The device is CMOS TTL compatible when operating between 4 and 5.5 Volts. The device exhibits extremely low RON and adds nearly zero propagation delay. The device adds no noise or ground bounce to the system.
The device consists of four independent 1bit switches with separate Output/Enable (OE) pins. Port A is connected to Port B when OE is high. If OE is low, the switch is high Z.
74FST3126DR2 Maximum Ratings
| Symbol | Parameter | Value | Unit |
| VCC | DC Supply Voltage | 0.5 to 7.0 | V |
| VI | DC Input Voltage | 0.5 to 7.0 | V |
| VO | DC Output Voltage | 0.5 to 7.0 | V |
| IIK | DC Input Diode Current VI GND | 50 | mA |
| IOK | DC Output Diode Current VO GND |
50 | mA |
| IO | DC Output Sink Current | 128 | mA |
| ICC | DC Supply Current per Supply Pin | 100 | mA |
| IGND | DC Ground Current per Ground Pin | 100 | mA |
| TSTG | Storage Temperature Range | 65 to 150 | C |
| TL | Lead Temperature, 1 mm from Case for 10 Seconds | 260 | C |
| TJ | Junction Temperature Under Bias | 150 | C |
| JA | Thermal Resistance (Note 1) SOIC TSSOP QSOP |
125 170 200 |
C/W |
| MSL | Moisture Sensitivity | Level 1 | |
| FR | Flammability Rating Oxygen Index: 28 to 34 | UL 94 V0 @ 0.125 in | |
| VESD |
ESD Withstand Voltage Human Body Model (Note 2) |
2000 200 |
V |
| ILATCHUP | LatchUp Performance Above V and Below GND at 85 C (Note 4) | 500 | mA |
74FST3126DR2 Features
RON 4 Typical
Less Than 0.25 nsMax Delay Through Switch
Nearly Zero Standby Current
No Circuit Bounce
Control Inputs are TTL/CMOS Compatible
PinForPin Compatible With QS3126, FST3126, CBT3126
All Popular Packages: QSOP16, TSSOP14, SOIC14
Less Than 0.25 nsMax Delay Through Switch
Nearly Zero Standby Current
No Circuit Bounce
Control Inputs are TTL/CMOS Compatible
PinForPin Compatible With QS3126, FST3126, CBT3126
All Popular Packages: QSOP16, TSSOP14, SOIC14

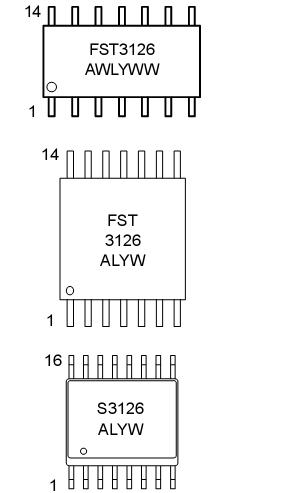

74FST3126DR2 Connection Diagram
74FST3126DR2
