74HC3G14

Features: • Wide supply voltage range from 2.0 to 6.0 V• High noise immunity• Low power dissipation• Balanced propagation delays• Unlimited input rise and fall times• Very small 8 pins package• ESD protection: HBM EIA/JESD22-A114-A exceeds 2000 V MM EIA/JE...

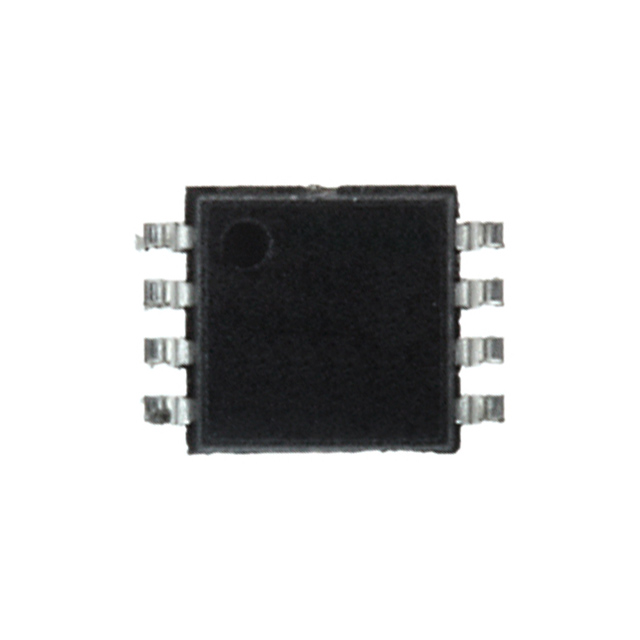

product image

74HC3G14 Picture
SeekIC No. : 004250757 Detail

74HC3G14: Features: • Wide supply voltage range from 2.0 to 6.0 V• High noise immunity• Low power dissipation• Balanced propagation delays• Unlimited input rise and fall times...

floor Price/Ceiling Price

Part Number:
74HC3G14
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Wide supply voltage range from 2.0 to 6.0 V
• High noise immunity
• Low power dissipation
• Balanced propagation delays
• Unlimited input rise and fall times
• Very small 8 pins package
• ESD protection:
   HBM EIA/JESD22-A114-A exceeds 2000 V
   MM EIA/JESD22-A115-A exceeds 200 V.
• Specified from −40 to +85 and −40 to +125 .



Application

• Wave and pulse shapers for highly noisy environments
• Astable multivibrators
• Monostable multivibrators
• Output capability: standard.



Pinout

  Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCC supply voltage   −0.5 +7.0 V
IIK input diode current VI < −0.5 V or VI >VCC + 0.5 V; note 1 ±20 mA
IOK output diode current VO < −0.5 V or VO >VCC + 0.5 V; note 1 ±20 mA
IO output source or sink current −0.5V<VO <VCC + 0.5 V; note 1 25 mA
ICC VCC or GND current note 1 50 mA
Tstg storage temperature   −65 +150
PD power dissipation Tamb = −40 to +125 ; note 2 300 mW

Notes

1. The input and output voltage ratings may be exceeded if the input and output current ratings are observed.

2. Above 110 the value of PD derates linearly with 8 mW/K.



Description

The 74HC3G14 is a high-speed Si-gate CMOS device.

The 74HC3G14 provides three inverting buffers with Schmitt-trigger action. This device is capable of transforming slowly changing input signals into sharply defined, jitter-free output signals.
