General Description
74HCT00 General Description
The 74HC00/74HCT00 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A.
The 74HC00/74HCT00 provide the 2-input NAND function.
74HCT00 Maximum Ratings
| SYMBOL | PARAMETER | CONDITIONS | MIN. | MAX. | UNIT |
| VCC | supply voltage | -0.5 | +7.0 | V | |
| IIK | input diode current | VI < -0.5 V or VI > VCC + 0.5 V | - | ±20 | mA |
| IOK | output diode current | VO < -0.5 V or VO > VCC + 0.5 V | - | ±20 | mA |
| IO | output source or sink current |
-0.5 V < VO < VCC + 0.5 V | - | ±25 | mA |
| ICC; IGND | VCC or GND current | - | ±50 | mA | |
| Tstg | storage temperature | -65 | +150 | °C | |
| Ptot | power dissipation |
Tamb = -40 to +125 °C; note 1 | - |
500 |
mW |
74HCT00 Features
· Complies with JEDEC standard no. 8-1A
· ESD protection: HBM EIA/JESD22-A114-A exceeds 2000 V MM EIA/JESD22-A115-A exceeds 200 V
· Specified from -40 to +85 °C and -40 to +125 °C.
· ESD protection: HBM EIA/JESD22-A114-A exceeds 2000 V MM EIA/JESD22-A115-A exceeds 200 V
· Specified from -40 to +85 °C and -40 to +125 °C.

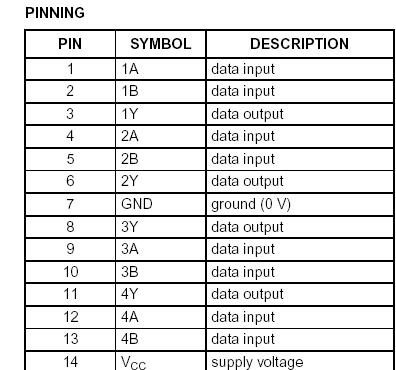

74HCT00 Connection Diagram
74HCT00N
