Purchase 74HCT540, In-stock 74HCT540 From SeekIC.
MFG:ST Package Cooled:SOP
Part Number: 74HCT540
MFG: ST
Package Cooled: SOP
Description: The 74HC/HCT540 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL...
- Table of contents:
74HCT540
-
Suppliers
DataSheet
General Description
74HCT540 General Description
The 74HC/HCT540 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A.
The 74HC/HCT540 are octal inverting buffer/line drivers with 3-state outputs. The 3-state outputs are controlled by
the output enable inputs OE1 and OE2. A HIGH on OEn causes the outputs to assume a high impedance OFF-state.
The "540" is identical to the "541" but has inverting outputs
74HCT540 Features
· Inverting outputs
· Output capability: bus driver
· ICC category: MSI
· Output capability: bus driver
· ICC category: MSI

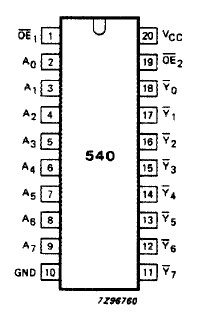

74HCT540 Connection Diagram
