Part Number: 74HCT9014









Description: The 74HC/HCT9014 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They a...


Urgent Purchase

74HCT9014 General Description


The 74HC/HCT9014 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A.

The 74HC/HCT9014 are nine wide Schmitt trigger inverting buffer/line drivers with Schmitt trigger inputs. These inputs transform slowly changing input signals into sharply defined jitter-free output signals.

The "9014" is identical to the "9015" but has inverting inputs.

74HCT9014 Features

· Schmitt trigger action on all data inputs
· Output capability: standard
· ICC category: MSI

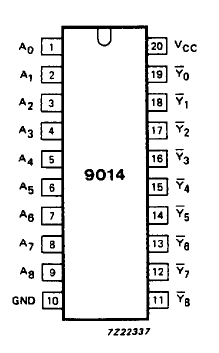

74HCT9014 Connection Diagram

74HCT9014 Connection Diagram
