Part Number: 74HCT9114
Description: The 74HC/HCT9114 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They a...
- Table of contents:
74HCT9114
-
Suppliers
DataSheet
General Description
74HCT9114 General Description
The 74HC/HCT9114 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A.
The 74HC/HCT9114 are nine wide Schmitt trigger inverting buffer with open drain outputs and Schmitt trigger inputs.
The Schmitt trigger action in the data inputs transform slowly changing input signals into sharply defined jitter-free output signals.
The 74HC/HCT9114 have open-drain N-transistor outputs, which are not clamped by a diode connected to VCC. In the OFF-state, i.e. when one input is LOW, the output may be pulled to any voltage between GND and VOmax. This allows the device to be used as a LOW-to-HIGH or HIGH-to-LOW level shifter. For digital operation and OR-tied output applications, these devices must have a pull-up resistor to establish a logic HIGH level.
The "9114" is identical to the "9115" but has inverting outputs.
74HCT9114 Features
· Schmitt trigger action on all data inputs
· Output capability: standard (open drain)
· ICC category: MSI
· Output capability: standard (open drain)
· ICC category: MSI

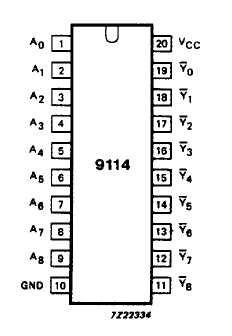

74HCT9114 Connection Diagram
74HCT9114
PDF/DataSheet Download
- Datasheet: 74HCT9114
- File Size: 47580 KB
- Manufacturer: PHILIPS [Philips Semiconductors]
- Click here to Download
