74LCX11

Features:

 5V tolerant inputs and outputs
 2.3V3.6V VCC specifications provided
 6.0ns tPD max (VCC   3.3V), 10 PA ICC max
 Power down high impedance inputs and outputs
 r24 mA output drive (VCC   3.0V)
 Implements patented noise/EMI reduction circuitry
 Latch-up performance exceeds JEDEC 78 conditions
 ESD performance:
  Human body model ! 2000V
  Machine model ! 200V
 Leadless DQFN Package

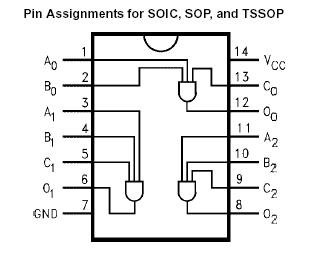

Pinout




Specifications

Symbol	Parameter	Value	Conditions	Units
VCC	Supply Voltage	−0.5 to +7.0		V
VI	DC Input Voltage	−0.5 to +7.0		V
VO	DC Output Voltage	−0.5 to VCC + 0.5	Output in HIGH or LOW State (Note 4)	V
IIK	DC Input Diode Current	−50	VI < GND	mA
IOK	DC Output Diode Current	−50 +50	VO < GND VO > VCC	mA
IO	DC Output Source/Sink Current	±50		mA
ICC	DC Supply Current per Supply Pin	±100		mA
IGND	DC Ground Current per Ground Pin	±100		mA
TSTG	Storage Temperature	−65 to +150		°C

Description

   The 74LCX11 is a triple 3-input AND gate with buffered outputs. LCX devices are designed for low voltage (2.5V or 3.3V) operation with the added capability of interfacing to a 5V signal environment.

   The 74LCX11 is fabricated with advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.
