74LCX139

Features:

 5V TOLERANT INPUTS
 HIGH SPEED:t_PD = 6.2ns (MAX.) at V_CC = 3V
 POWER DOWN PROTECTION ON INPUTS AND OUTPUTS
 SYMMETRICAL OUTPUT IMPEDANCE:|I_OH| = I_OL = 24mA (MIN) at V_CC = 3V
 PCI BUS LEVELS GUARANTEED AT 24 mA
 BALANCED PROPAGATION DELAYS: t_PLH ≅ t_PHL
 OPERATING VOLTAGE RANGE:V_CC(OPR) = 2.0V to 3.6V (1.5V Data Retention)
 PIN AND FUNCTION COMPATIBLE WITH 74 SERIES 139
 LATCH-UP PERFORMANCE EXCEEDS 500mA (JESD 17)
 ESD PERFORMANCE:
   HBM > 2000V (MIL STD 883 method 3015);
   MM > 200V

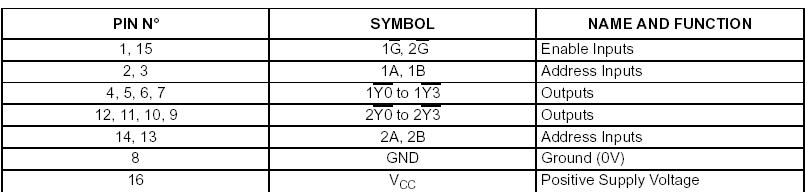

Pinout




Specifications

Symbol	Parameter	Value	Unit
VCC	Supply Voltage	-0.5 to +7.0	V
VI	DC Input Voltage	-0.5 to +7.0	V
VO	DC Output Voltage (VCC = 0V)	-0.5 to +7.0	V
VO	DC Output Voltage (High or Low State) (note 1)	-0.5 to VCC + 0.5	V
IIK	DC Input Diode Current	- 50	mA
IOK	DC Output Diode Current (note 2)	- 50	mA
IO	DC Output Current	± 50	mA
ICC	DC Supply Current per Supply Pin	± 100	mA
IGND	DC Ground Current per Supply Pin	± 100	mA
Tstg	Storage Temperature	-65 to +150	°C
TL	Lead Temperature (10 sec)	300	°C

Description

   The 74LCX139 is a low voltage CMOS DUAL 2 TO 4 LINE DECODER/DEMULTIPLEXER fabricated with sub-micron silicon gate and double-layer metal wiring C²MOS technology.

   It is ideal for low power and high speed 3.3V applications; it can be interfaced to 5V signal environment for inputs.

   The active low enable input of the 74LCX139 can be used for gating or as a data input for demultiplexing applications. While the enable input is held high, all four outputs are high independently of the other inputs.

   It has same speed performance at 3.3V than 5V AC/ACT family, combined with a lower power consumption.

   All inputs and outputs of the 74LCX139 are equipped with protection circuits against static discharge, giving them 2KV ESD immunity and transient excess voltage.
