74LCX16374A

AbsoluteMaximumRatingsarethose values beyond whichdamage to the device may occur. Functional operation under these condition isnot implied.
1) I_O absolute maximum ratingmust be observed
2)V_O <GND, V_O >V_CC

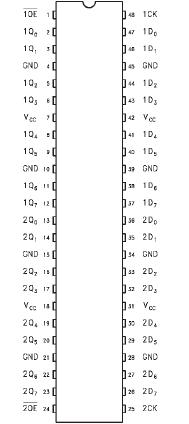

The 74LCX16374A is a low voltage CMOS 16-BIT D-TYPE FLIP FLOP with 3 STATE OUTPUT NON INVERTING fabricated with sub-micron silicon gate and double-layer metal wiring C2MOS technology. It is ideal for low power and high speed applications; it can be interfaced to 5V signal environment for both inputs and outputs. These 16 bit D-Type flip-flops are controlled by two clock inputs (nCK) and two output enable inputs (nOE).

On the positive transition of the (nCK), the nQ outputs will be set to the logic state that were setup at the nD inputs.

While the (nOE) input of the 74LCX16374A is low, the 8 outputs (nQ) will be in a normal state (high or low logic level) and while high level the outputs will be in a high impedance state.

Any output control of the 74LCX16374A does not affect the internal operation of flip flops; that is, the old data can be retained or the new data can be entered even while the outputs are off.

It has better speed performance at 3.3V than 5V LSTTL family combined with the true CMOS low power consumption.

All inputs and outputs of the 74LCX16374A are equipped with protection circuits against static discharge, giving them 2KV ESD immunity and transient excess voltage.
