74LCXH16374

Features:

5V tolerant control inputs and outputs
2.3V3.6V VCC specifications provided
6.2 ns tPD max (VCC = 3.3V), 20 µA ICC max
Bushold on inputs eliminating the need for external pull-up/pull-down resistors
Power down high impedance outputs
±24 mA output drive (VCC = 3.0V)
Implements patented noise/EMI reduction circuitry
Latch-up performance exceeds 500 mA
ESD performance:Human body model > 2000V Machine model > 200V
Also packaged in plastic Fine-Pitch Ball Grid Array(FBGA)

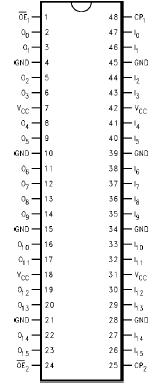

Pinout




Specifications

Symbol	Parameter	Value	Conditions	Units
VCC	Supply Voltage	−0.5 to +7.0		V
VI	DC Input Voltage I0 - I15 OE1, CPn	−0.5 to VCC + 0.5 −0.5 to +7.0		V
VO	DC Output Voltage	−0.5 to +7.0 −0.5 to VCC + 0.5	Output in 3-STATE Output in HIGH or LOW State (Note 3)	V
IIK	DC Input Diode Current	−50	VI < GND	mA
IOK	DC Output Diode Current	−50 +50	VO < GND VO > VCC	mA
IO	DC Output Source/Sink Current	+50		mA
ICC	DC Supply Current per Supply Pin	±100		mA
IGND	DC Ground Current per Ground Pin	±100		mA
TSTG	Storage Temperature	−65 to +150		°C

Description

The 74LCXH16374 contains sixteen non-inverting D-type flipflops with 3-STATE outputs and is intended for bus oriented applications. The 74LCXH16374 is byte controlled. A buffered clock (CP) and Output Enable (OE) are common to each byte and can be shorted together for full 16-bit operation.

The 74LCXH16374 is designed for low voltage (2.5V or 3.3V) VCC applications.

The 74LCXH16374 is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.

The 74LCXH16374 data inputs include active bushold circuitry, eliminating the need for external pull-up resistors to hold unused or floating data inputs at a valid logic level.
