74LCXU04

Features:

`5V TOLERANT INPUTS
`HIGH SPEED: t_PD = 5.2ns (MAX.) at V_CC = 3V
`POWER DOWN PROTECTION ON INPUTS AND OUTPUTS
`SYMMETRICAL OUTPUT IMPEDANCE: |I_OH| = I_OL = 24mA (MIN) at V_CC = 3V
`PCI BUS LEVELS GUARANTEED AT 24 mA
`BALANCED PROPAGATION DELAYS:t_PLH  t_PHL
`OPERATING VOLTAGE RANGE:V<sub>CC</sub>(OPR) = 2.0V to 3.6V (1.5V Data Retention)
`PIN AND FUNCTION COMPATIBLE WITH 74 SERIES U04
`LATCH-UP PERFORMANCE EXCEEDS 500mA (JESD 17)
`ESD PERFORMANCE: HBM > 2000V (MIL STD 883 method 3015);MM > 200V

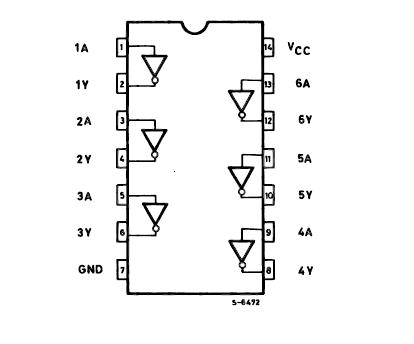

Pinout




Specifications

Symbol	Parameter	Value	Unit
VCC	Supply Voltage	-0.5 to +7.0	V
VI	DC Input Voltage	-0.5 to +7.0	V
VO	DC Output Voltage (VCC = 0V)	-0.5 to +7.0	V
VO	DC Output Voltage (High or Low State) (note 1)	-0.5 to VCC + 0.5	V
IIK	DC Input Diode Current	- 50	mA
IOK	DC Output Diode Current (note 2)	- 50	mA
IO	DC Output Current	± 50	mA
ICC	DC Supply Current per Supply Pin	± 100	mA
IGND	DC Supply Current per Supply Pin	± 100	mA
Tstg	Storage Temperature	-65 to +150	°C
TL	Lead Temperature (10 sec)	300	°C

Description

The 74LCXU04 is a low voltage CMOS HEX INVERTER (SINGLE STATE) fabricated with sub-micron silicon gate and double-layer metalwiring C²MOS technology. It is ideal for low power and high speed 3.3V applications. It can be interfaced to 5V signal environment for inputs. It has same speed performance at 3.3V than 5V AC/ACT family, combined with a lower power consumption.
All inputs and outputs of the 74LCXU04 are equipped with protection circuits against static discharge, giving them 2KV ESD immunity and transient excess voltage.
