Purchase 74LS11, In-stock 74LS11 From SeekIC.
MFG:TI
- Table of contents:
74LS11
-
Suppliers
DataSheet
General Description
74LS11 Maximum Ratings
| Symbol | Parameter | Min | Typ | Max | Unit | |
| VCC | Supply Voltage | 54 74 |
4.5 4.75 |
5.0 5.0 |
5.5 5.25 |
V |
| TA | Operating Ambient Temperature Range | 54 74 |
55 0 |
25 25 |
125 70 |
°C |
| IOH | Output Current - High | 54,74 | -0.4 | mA | ||
| IOL | Output Current - Low | 54 74 |
4.0 8.0 |
mA |

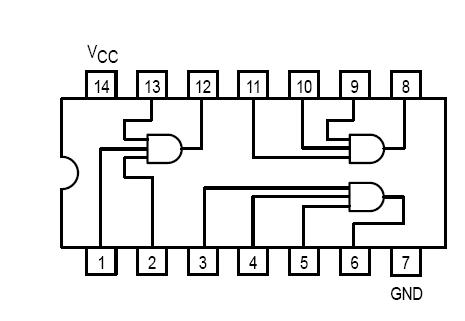

74LS11 Connection Diagram
