Purchase 74LS12, In-stock 74LS12 From SeekIC.
MFG:MIT Package Cooled:DIP D/C:07+
- Table of contents:
74LS12
-
Suppliers
DataSheet
General Description
74LS12 Maximum Ratings
| Symbol | Parameter | Min | Typ | Max | Unit | |
| VCC | Supply Voltage | 54 74 |
4.5 4.75 |
5.0 5.0 |
5.5 5.25 |
V |
| TA | Operating Ambient Temperature Range | 54 74 |
55 0 |
25 25 |
125 70 |
°C |
| IOH | Output Current - High | 54 74 |
5.5 | mA | ||
| IOL | Output Current - Low | 54 74 |
4.0 8.0 |
mA |

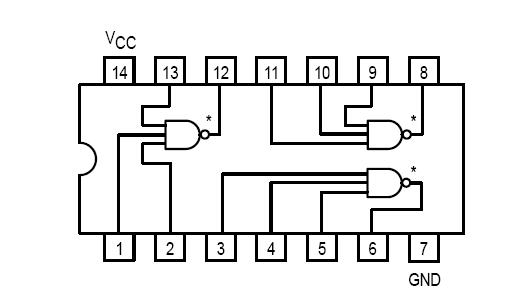

74LS12 Connection Diagram
