Part Number: 74LS122
Package Cooled: DIP
Description: These dc triggered multivibrators feature pulse width control by three methods. The basic pulse width ...
- Table of contents:
74LS122
-
Suppliers
DataSheet
General Description
74LS122 General Description
These dc triggered multivibrators feature pulse width control by three methods. The basic pulse width is programmed by selection of external resistance and capacitance values. The LS122 has an internal timing resistor that allows the circuits to be used with only an external capacitor. Once triggered, the basic pulse width may be extended by retriggering the gated low-level-active (A) or high-level-active (B) inputs, or be reduced by use of the overriding clear.
74LS122 Features
• Overriding Clear Terminates Output Pulse
• Compensated for VCC and Temperature Variations
• DC Triggered from Active-High or Active-Low Gated Logic Inputs
• Retriggerable for Very Long Output Pulses, up to 100% Duty Cycle
• Internal Timing Resistors on LS122
• Compensated for VCC and Temperature Variations
• DC Triggered from Active-High or Active-Low Gated Logic Inputs
• Retriggerable for Very Long Output Pulses, up to 100% Duty Cycle
• Internal Timing Resistors on LS122

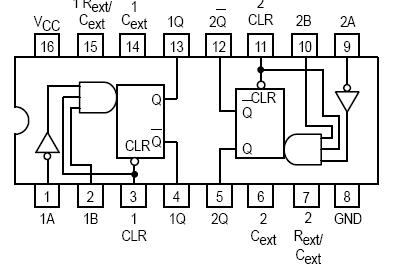

74LS122 Connection Diagram
74LS122
PDF/DataSheet Download
- Datasheet: 74LS122
- File Size: 175717 KB
- Manufacturer: ON Semiconductor
- Click here to Download
