74LS181

The 74LS181 is a 4-bit Arithmetic Logic Unit (ALU) which can perform all the possible 16 logic operations on two variables and a variety of arithmetic operations.

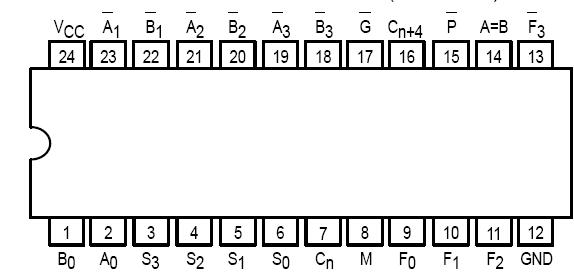

Features of the 74LS181 are:(1)provides 16 arithmetic operations: add, subtract, compare double, plus twelve other arithmetic operations;(2)provides all 16 logic operations of two variables:exclusive-OR, compare, AND, NAND, OR, NOR, plus ten other logic operations;(3)full lookahead for high speed arithmetic operation on long words.

The absolute maximum ratings of the 74LS181 can be summarized as:(1):the parameter is supply voltage,the symbol is VDD,the rating is 7,the unit is V;(2):the parameter is input voltage,the symbol is VI,the rating is 7,the unit is V;(3):the parameter is operating free air temperature range,the symbol is TA,the rating is 0 to +70,the unit is ;(4):the parameter is storage temperature range,the symbol is Tstg,the rating is -65 to +150,the unit is .The "absolute maximum ratings" are those values beyond which the safety of the device cannot be guaranteed. The 74LS181 should not be operated at these limits. The parametric values defined in the Electrical Characteristics tables are not guaranteed at the absolute maximum ratings.The "Recommended Operating Conditions" table will define the conditions for actual device operation.
