Part Number: 74LS242



MFG: MOT.



D/C: 04+

Description: The SN54/74LS242 and SN54/74LS243 are Quad Bus Transmitters /Receivers designed for 4-line asynchronous 2-way data comm...


Urgent Purchase

74LS242 General Description


The SN54/74LS242 and SN54/74LS243 are Quad Bus Transmitters /Receivers designed for 4-line asynchronous 2-way data communications between data buses.

74LS242 Features

• Hysteresis at Inputs to Improve Noise Immunity
• 2-Way Asynchronous Data Bus Communication
• Input Clamp Diodes Limit High-Speed Termination Effects

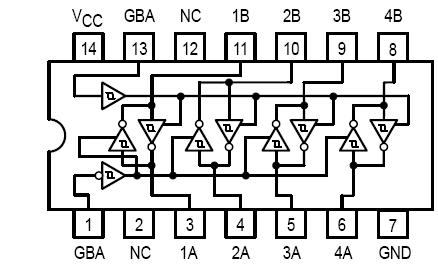

74LS242 Connection Diagram

74LS242 Connection Diagram

74LS242 datasheet
