Purchase 74LS258B, In-stock 74LS258B From SeekIC.
Package Cooled:SMD
Part Number: 74LS258B
Package Cooled: SMD
Description: The LSTTL/MSI SN54/74LS257B and the SN54/74LS258B are Quad 2-Input Multiplexers with 3-state outputs. ...
- Table of contents:
74LS258B
-
Suppliers
DataSheet
General Description
74LS258B General Description
The LSTTL/MSI SN54/74LS257B and the SN54/74LS258B are Quad 2-Input Multiplexers with 3-state outputs. Four bits of data from two sources can be selected using a Common Data Select input. The four outputs present the selected data in true (non-inverted) form. The outputs may be switched to a high impedance state with a HIGH on the common Output Enable (EO) Input, allowing the outputs to interface directly with bus oriented systems. It is fabricated with the Schottky barrier diode process for high speed and is completely compatible with all Motorola TTL families.
74LS258B Features
• Schottky Process For High Speed
• Multiplexer Expansion By Tying Outputs Together
• Non-Inverting 3-State Outputs
• Input Clamp Diodes Limit High Speed Termination Effects
• Special Circuitry Ensures Glitch Free Multiplexing
• ESD > 3500 Volts
• Multiplexer Expansion By Tying Outputs Together
• Non-Inverting 3-State Outputs
• Input Clamp Diodes Limit High Speed Termination Effects
• Special Circuitry Ensures Glitch Free Multiplexing
• ESD > 3500 Volts

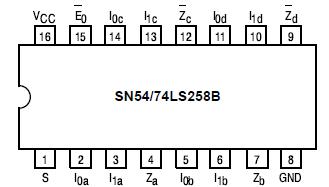

74LS258B Connection Diagram
