Part Number: 74LVC16244A



MFG: PHI

Package Cooled: TSSOP/48



Description: The 74LVC(H)16244A is a high-performance, low power, low voltage, Si-gate CMOS device, superior to most advanced CMOS c...


Urgent Purchase

74LVC16244A General Description


The 74LVC(H)16244A is a high-performance, low power, low voltage, Si-gate CMOS device, superior to most advanced CMOS compatible TTL families. Inputs can be drivenfromeither3.3 or 5 Vdevices.In3-stateoperation,outputscanhandle5 Volt.Thesefeaturesallowtheuseof these devices as a mixed 3.3 and 5 V environment.

The 74LVC(H)16244A is a 16-bit non-inverting buffer/line driverwith3-stateoutputs.Thedevicecanbeusedasfour 4-bit buffers, two 8-bit buffers or one 16-bit buffer. The devicefeaturesfourOutputEnables(1OE,2OE,3OE and 4OE),eachcontrollingfourofthe3-stateoutputs.AHIGH on nOE causes the outputs to assume a high-impedance OFF-state.

74LVC16244A Features

* 5 V tolerant inputs/outputs for interfacing with 5 V l
* Wide supply voltage range from 1.2 to 3.6 V
* CMOS low power consumption
* MULTIBYTETM  flow-through standard pin-out architecture
* Low inductance multiple power and ground pins fo
   minimum noise and ground bounce
* Direct interface with TTL levels
* All data inputs have bushold (74LVCH16244A only
* Complies with JEDEC standard no. 8-1A
* ESD protection:
   HBM EIA/JESD22-A114-A exceeds 2000 V
   MM EIA/JESD22-A115-A exceeds 200 V.
* Specified from -40 to +85 °C and -40 to +125 °C.

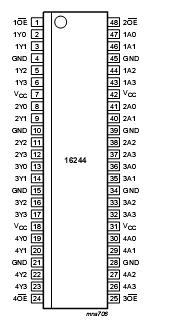

74LVC16244A Connection Diagram

74LVC16244A Connection Diagram

74LVC16244A datasheet

74LVC16244A
PDF/DataSheet Download
