Position: Home > Datasheet list > 74L Series > Index 7 > 74LVC16244ADGGRG4
Electronica China

Purchase 74LVC16244ADGGRG4, In-stock 74LVC16244ADGGRG4 From SeekIC.

MFG:Texas Instruments  Category:Integrated Circuits (ICs)

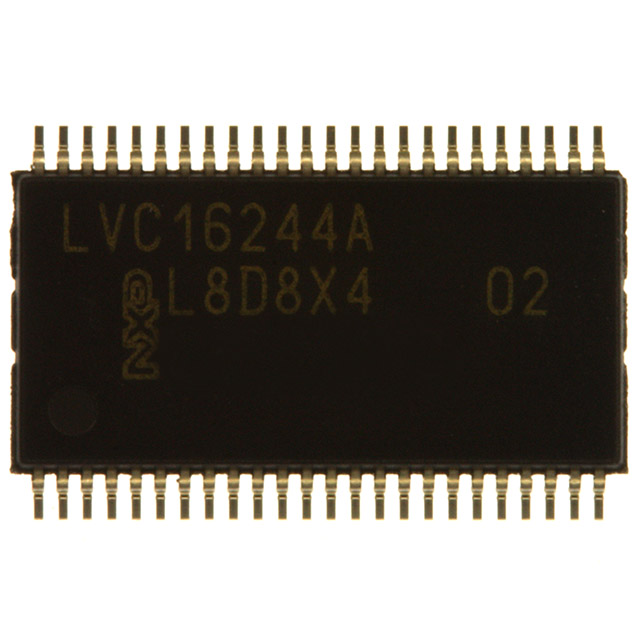

74LVC16244ADGGRG4 Product Image

74L Series Datasheet download

Five Points

Part Number: 74LVC16244ADGGRG4

Category: Integrated Circuits (ICs)

MFG: Texas Instruments





Descriptions: IC BUFF/DVR TRI-ST 16BIT 48TSSOP

Price Break

2000

Unit Price

.50540

Extended Price

1010.80

(All prices are in USD) Prices for reference only
Urgent Purchase

74LVC16244ADGGRG4 General Description

IC BUFF/DVR TRI-ST 16BIT 48TSSOP

74LVC16244ADGGRG4 Parameters

Technical/Catalog Information74LVC16244ADGGRG4
VendorTexas Instruments
CategoryIntegrated Circuits (ICs)
Logic TypeLine Driver, Non-Inverting
Package / Case48-TSSOP
PackagingTape & Reel (TR)
Mounting TypeSurface Mount
Number of Bits per Element4
Number of Elements4 - Quad
Operating Temperature-40°C ~ 85°C
Voltage - Supply1.65 V ~ 3.6 V
Current - Output High, Low24mA, 24mA
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 74LVC16244ADGGRG4
74LVC16244ADGGRG4

74LVC16244ADGGRG4 datasheet

74L71
PDF/DataSheet Download

Find 74LVC16244ADGGRG4 Suppliers
