74LVC2G132DCURE4

IC DUAL 2IN NAND GATE 8-US8

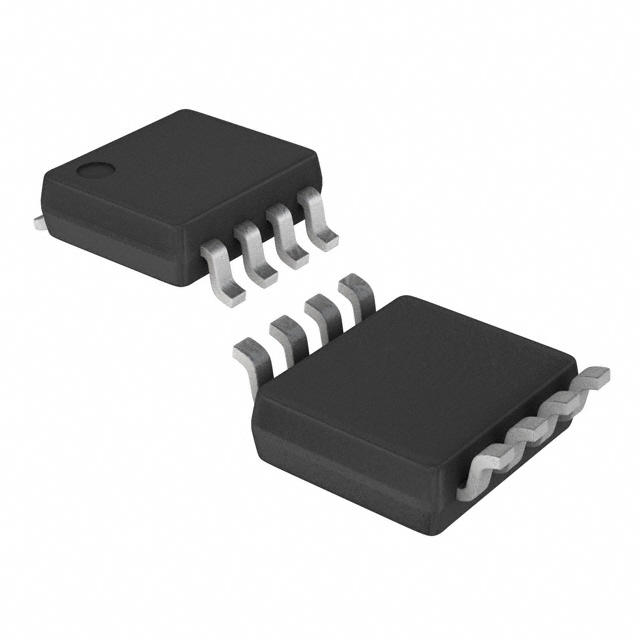

product image

74LVC2G132DCURE4 Picture
See larger image
SeekIC No. : 003543368 Detail

74LVC2G132DCURE4: IC DUAL 2IN NAND GATE 8-US8

74LVC2G132DCURE4 Data Sheet

floor Price/Ceiling Price

US $ .11~.11 / Piece | Get Latest Price
Part Number:
74LVC2G132DCURE4
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~3000
  • Unit Price
  • $.11
  • Processing time
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: 74LVC Manufacturer: Texas Instruments
Logic Type: NAND Gate Logic Family : 74ALS
Number of Circuits: 2 Number of Inputs: 2
Features: Schmitt Trigger Voltage - Supply: 1.65 V ~ 5.5 V
Current - Quiescent (Max): 10µA Current - Output High, Low: 32mA, 32mA
Logic Level - Low: 0.39 V ~ 1.87 V Logic Level - High: 1.16 V ~ 3.33 V
Max Propagation Delay @ V, Max CL: 5ns @ 5V, 50pF Operating Temperature: -40°C ~ 85°C
Mounting Type: Surface Mount Supplier Device Package: US8
Package / Case: 8-VFSOP (0.091", 2.30mm Width)

Description

Series: 74LVC
Manufacturer: Texas Instruments
Features: Schmitt Trigger
Voltage - Supply: 1.65 V ~ 5.5 V
Current - Quiescent (Max): 10µA
Current - Output High, Low: 32mA, 32mA
Logic Level - Low: 0.39 V ~ 1.87 V
Logic Level - High: 1.16 V ~ 3.33 V
Max Propagation Delay @ V, Max CL: 5ns @ 5V, 50pF
Operating Temperature: -40°C ~ 85°C
Mounting Type: Surface Mount
Packaging: Tape & Reel (TR)Alternate Packaging
Number of Inputs: 2
Logic Type: NAND Gate
Number of Circuits: 2
Supplier Device Package: US8
Package / Case: 8-VFSOP (0.091", 2.30mm Width)


Parameters:

Technical/Catalog Information74LVC2G132DCURE4
VendorTexas Instruments
CategoryIntegrated Circuits (ICs)
Number of Circuits2 - Dual
Package / CaseUS8, 8-VSSOP
Logic TypeNAND Gate - Schmitt Trigger
PackagingTape & Reel (TR)
Mounting TypeSurface Mount
Number of Inputs2
Current - Output High, Low32mA, 32mA
Supply Voltage1.65 V ~ 5.5 V
Operating Temperature-40°C ~ 85°C
Voltage - Supply1.65 V ~ 5.5 V
Drawing Number296; 4200503; DCU; 8
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 74LVC2G132DCURE4
74LVC2G132DCURE4
