Features:

• 16-bit edge-triggered flip-flop
• 3-State buffers
• Output capability: +12 mA / -12 mA
• TTL input and output switching levels
• Input and output interface capability to systems at 5 V supply
• Bus-hold data inputs eliminate the need for external pull-upresistors to hold unused inputs
• Live insertion/extraction permitted
• Outputs include series resistance of 30 W making external resistors unnecessary
• Power-up reset
• Power-up 3-State
• No bus current loading when output is tied to 5 V bus
• Latch-up protection exceeds 500mA per JEDEC Std 17
• ESD protection exceeds 2000 V per MIL STD 883 Method 3015and 200 V per Machine Model


Pinout

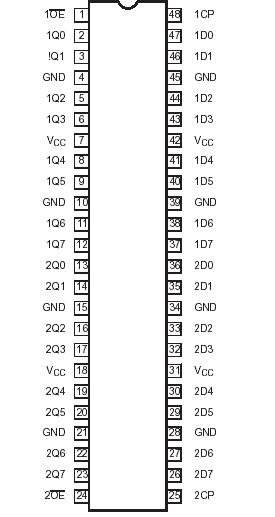

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS RATING UNIT
VCC DC supply voltage   0.5 to +4.6 V
IIK DC input diode current VI < 0 50 mA
VI DC input voltage3   0.5 to +7.0 V
IOK DC output diode current VO < 0 50 mA
VOUT DC output voltage3 Output in Off or High state 0.5 to +7.0 V
IOUT DC output current Output in High state 32 mA
Output in Low state 64
Tstg Storage temperature range   65 to 150 °C



Description

The 74LVT162374 is a high-performance BiCMOS product designed for VCC operation at 3.3 V.

The 74LVT162374 is designed with 30 series resistance in both the High and Low states of the output. This design reduces line noise in applications such as memory address drivers, clock drivers, and bus receivers/transmitters.

This 74LVT162374 is a 16-bit edge-triggered D-type flip-flop featuring non-inverting 3-State outputs. The device can be used as two 8-bit flip-flops or one 16-bit flip-flop. On the positive transition of the clock (CP), the Q outputs of the flip-flop take on the logic levels set up at the D inputs.
