MFG:TSSOP Package Cooled:FAIRCHILD D/C:06+
MFG: TSSOP
Package Cooled: FAIRCHILD
D/C: 06+
Description: The LVT16244 and LVTH16244 contain sixteen non-invert-ing buffers with 3-STATE outputs designed...

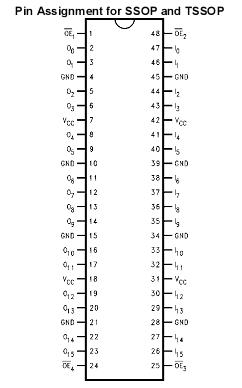

The LVT16244 and LVTH16244 contain sixteen non-invert-ing buffers with 3-STATE outputs designed to be employed as a memory and address driver, clock driver, or bus ori-ented transmitter/receiver. The device is nibble controlled.Individual 3-STATE control inputs can be shorted together for 8-bit or 16-bit operation.
The LVTH16244 data inputs include bushold, eliminating the need for external pull-up resistors to hold unused inputs.
These buffers and line drivers are designed for low-voltage (3.3V) VCC applications, but with the capability to provide a TTL interface to a 5V environment. The LVT16244 and LVTH16244 are fabricated with an advanced BiCMOS technology to achieve high speed operation similar to 5V ABT while maintaining a low power dissipation
| Symbol | Parameter | Value | Conditions | Units |
| VCC | Supply Voltage | -0.5 to 4.6 |
V | |
| VI | DC Input Voltage | -0.5 to 7.0 | V | |
| VO | Output Voltage | -0.5 to 7.0 | Output in 3-STATE | V |
| -0.5 to 7.0 | Output in HIGH or LOW State (Note 4) | |||
| IIK | DC Input Diode Current | -50 | VI GND |
mA |
| IOK | DC Output Diode Current | -50 | VO GND |
mA |
| IO | DC Output Current | 64 | VO VCC Output at High State |
mA |
| 128 | VO VCC Output at Low State | |||
| ICC | DC Supply Current per Supply Pin | ±64 |
mA | |
| IGND | DC Ground Current per Ground Pin |
±128 |
mA | |
| TSTG | Storage Temperature | -65 to 150 |
74LVT16244
PDF/DataSheet Download
