Features:

*Octal bus interface
*3-State buffers
*Output capability: +64mA/-32mA
*TTL input and output switching levels
*Input and output interface capability to systems at 5V supply
*Bus-hold data inputs eliminate the need for external pull-up
  resistors to hold unused inputs
*Power-up 3-State
*Live insertion/extraction permitted
*No bus current loading when output is tied to 5V bus
*Latch-up protection exceeds 500mA per JEDEC Std 17
*ESD protection exceeds 2000V per MIL STD 883 Method 3015
  and 200V per Machine Model


Pinout

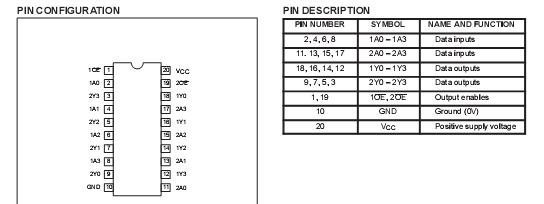

Connection Diagram


Specifications

SYMBOL
PARAMETER
CONDITIONS
RATING
UNIT
VCC DC supply voltage
0.5 to +4.6
V
VI DC input voltage3
0.5 to +7.0
V
VOUT DC output voltage3 Output in Off or High state
0.5 to +7.0
V
IOUT DC output current Output in Low state
128
mA
Output in High state
64
IIK DC input diode current VI < 0
50
mA
IOK DC output diode current VO < 0
50
mA
Tstg Storage temperature range
65 to 150
°C



Description

The 74LVT244A is a high-performance BiCMOS product designed for VCC operation at 3.3V.

This 74LVT244A is an octal buffer that is ideal for driving bus lines. The device features two Output Enables (OE1, OE2), each controlling four of the 3-State outputs.
